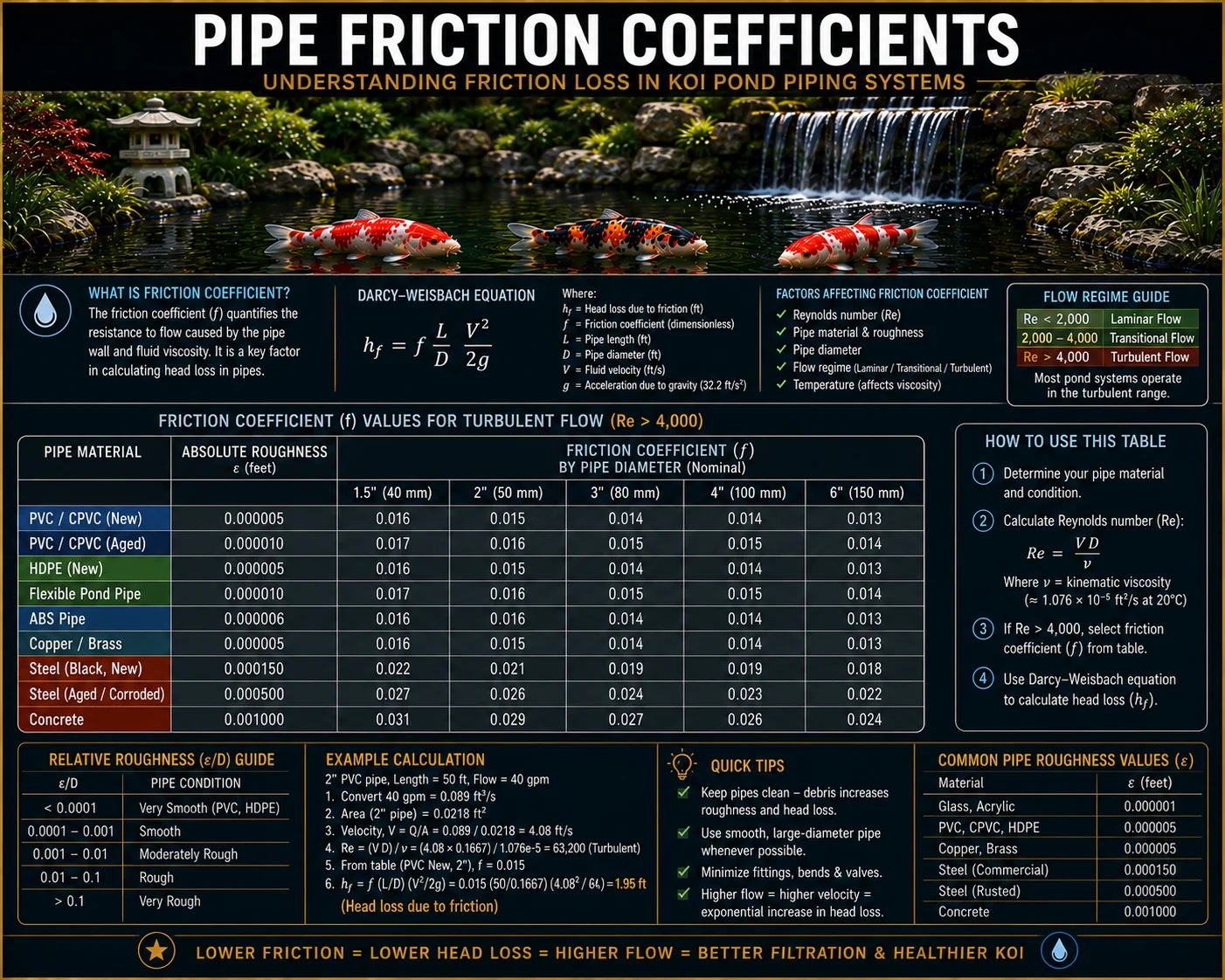

Schedule 40 and Schedule 80 PVC pipe friction and laminar flow resistance comparison

Contents

1. Pipe Wall Friction Coefficients and Laminar Flow Resistance in Schedule 40/80 PVC

Pipe Wall Friction Coefficients and Laminar Flow Resistance in Schedule 40/80 PVC

Pipe friction in koi pond plumbing is often reduced to a single ‘roughness number,’ but actual head loss depends on flow regime, internal diameter, and fluid properties working together. Schedule 40 and Schedule 80 PVC share the same wall material but not the same hydraulics once wall thickness changes actual ID.

This page separates material roughness from the Darcy-Weisbach friction factor, walks through laminar versus turbulent behavior, and explains where Hazen-Williams shortcuts break down. The goal is defensible pump-curve and head-loss estimates, not a single coefficient applied blindly across every pond system.

Fluid Dynamics and Pipe Geometry

Evaluate your knowledge of PVC friction and flow dynamics.

Hydraulic Engineering Assessment

0/0

Mastering Flow Dynamics

PVC Hydraulic Engineering Quiz

Test your expertise in pond plumbing hydraulics.

Before You Start

🧠 Think at Your Own Pace. Your Analysis Time tracks total reasoning time with zero time limits or rush. Precision matters more than speed.

📖 Learn as You Analyze. Every question includes a core hydraulic explanation and direct links to full topic guides.

🏆 Professional Score. You’ll receive a Hydraulic Proficiency Score upon completion based strictly on your understanding accuracy.

10 Questions. 10 Pipe Friction and Flow Topics.

Get Ready

Question 1 of 10

0.0

Analysis Clock

Loading question…

Correct

Here’s the reasoning…

Correct answer appears here.

Design Insight

Observation text goes here.

📖 Need deeper analysis or hydraulic calculations? Explore topic guides below ↓

Next question in 10

Challenge Complete

0.0s

0/10 Score

Getting There

Score summary loading.

Raptive Ad Slot
300 × 600
Sticky Sidebar

Quick Facts

DisciplineSch80 has smaller ID than Sch40 at same nominal size

Core VariableLaminar friction factor equals 64 divided by Reynolds number

Governing PrincipleTransition to turbulent flow typically near Re 2300-4000

Typical RangePVC relative roughness is low but not zero

Primary Failure ModeDarcy factor is four times the Fanning factor

Detection MethodColebrook equation requires iterative or approximate solving

Calculation FormulaHazen-Williams assumes turbulent flow and fixed viscosity

Drain Placement ImpactCold water raises viscosity and can shift flow regime

Most Common OversightFittings often dominate total system head loss

Secondary FactorBiofilm buildup increases effective roughness over time

Frequently Asked Questions

Is PVC friction the same for Schedule 40 and 80?

No. Wall material roughness is similar, but Schedule 80’s thicker wall reduces internal diameter, raising velocity and friction loss for a given nominal pipe size at the same flow rate.

When does koi pond flow become laminar?

Laminar flow is uncommon in typical pond plumbing sized for turnover rates, since velocities usually push Reynolds numbers well into turbulent range. Low-flow bypass lines or chilled water can approach transitional behavior.

Can I use Hazen-Williams for pond pipe sizing?

It works as a quick estimate for fully turbulent water flow but ignores viscosity changes and loses accuracy near transition or in small-diameter, low-velocity runs common in skimmer and bottom-drain lines.

Why do two pipes with the same roughness give different friction factors?

Friction factor depends on relative roughness, which is roughness height divided by diameter, plus Reynolds number. Identical wall texture in different diameters or flow rates produces different friction factors.

Does biofilm meaningfully change head loss?

Yes, over time. A thin biological layer raises effective roughness and can reduce effective diameter slightly, gradually shifting the pump operating point and reducing delivered flow even without visible blockage.

Should I trust an online friction factor calculator for design?

Use it as a starting estimate, but verify assumed roughness, viscosity, and diameter inputs. Fittings, real installation geometry, and biofilm are frequently omitted and can shift results substantially.

Field Note

On several retrofit jobs, measured head loss ran higher than Hazen-Williams predicted once returns included multiple 90-degree fittings and a partially throttled valve, even though pipe runs were short and straight.

Switching to a Darcy-Weisbach approach with itemized minor-loss coefficients closed most of the gap, reinforcing that fitting losses, not pipe wall friction alone, were driving the discrepancy in that specific layout.

Flow Regime and the Friction Factor

Reynolds number determines whether flow is laminar, transitional, or turbulent, and this regime governs which friction relationship applies. In laminar flow, the Darcy friction factor equals 64/Re, independent of pipe roughness.

Laminar: friction factor = 64/Re, roughness irrelevant
Transitional: behavior unstable, avoid firm design reliance here
Turbulent: friction factor depends on Re and relative roughness

Once flow turns turbulent, roughness height relative to diameter starts influencing friction meaningfully, which is why identical PVC material can behave differently across pipe sizes and velocities.

Moody, Colebrook, and Practical Solving

The Colebrook equation implicitly relates friction factor to Reynolds number and relative roughness; Moody charts visualize the same relationship. Explicit approximations exist for hand or spreadsheet use without iterative solving, useful for field estimates.

Field Note

For most pond returns, an explicit Colebrook approximation gives friction factors within a few percent of iterative solutions, which is close enough given uncertainty in actual roughness and installation variance.

Darcy vs Fanning, and Hazen-Williams Limits

The Darcy friction factor is four times the Fanning friction factor; mixing them without checking which convention a source uses is a common calculation error that silently inflates or deflates head-loss estimates.

Hazen-Williams uses an empirical coefficient tuned for turbulent water flow at typical temperatures. It does not account for viscosity shifts from cold water or near-laminar conditions, so it can mislead in low-flow or chilled applications.

Field Note

Water temperature swings across seasons change viscosity enough to shift Reynolds number by a meaningful margin in marginal-velocity lines, occasionally nudging flow near the transitional zone during winter operation.

Minor losses from elbows, tees, valves, and unions often exceed straight-pipe friction in compact pond plumbing runs. Loss coefficients for each fitting should be summed alongside Darcy-Weisbach pipe losses, not treated as negligible extras.

Practical troubleshooting starts with measuring actual flow and pressure against the pump curve; a gap versus calculated head loss often points to fitting count errors, biofilm buildup, or a misread actual internal diameter rather than a wrong roughness assumption.

Koi Pond Piping Systems

Review indexed engineering questions below.

Fluid Friction Fundamentals and Reynolds Regimes

Q1:

What is the primary characteristic of laminar flow in a smooth PVC pipe?

Fluid velocity profiles exhibit a flat distribution across the entire pipe cross-section
Turbulent eddies dominate the flow structure causing significant energy loss through internal friction
The Reynolds number exceeds four thousand indicating a transition to fully developed turbulent flow
Fluid particles move in parallel layers with no macroscopic mixing between layers

Correct Answer: Option D

Laminar flow is defined by smooth, orderly fluid motion in layers where viscous forces dominate, preventing the mixing characteristic of turbulent flow.

Q2:

Which Reynolds number range typically defines the transition zone between laminar and turbulent flow?

Transition flow is observed exclusively at Reynolds numbers below five hundred in smooth pipes
The critical transition threshold is defined by a Reynolds number exactly equal to ten thousand
Transition regimes are characterized by constant friction factors regardless of the pipe surface roughness
The transition zone occurs between Reynolds numbers of two thousand and four thousand

Correct Answer: Option D

In pipe flow, the transition from laminar to turbulent flow generally occurs within the Reynolds number range of 2,000 to 4,000.

Q3:

How does the Darcy-Weisbach friction factor behave in the fully turbulent flow regime?

Friction factor decreases linearly as the fluid velocity increases within the fully turbulent zone
The friction factor remains constant regardless of the relative roughness of the pipe wall material
Turbulent friction factors are calculated using the inverse of the Reynolds number multiplied by sixty-four
The friction factor becomes independent of the Reynolds number and depends on roughness

Correct Answer: Option D

In the fully turbulent regime, the friction factor is governed by the relative roughness of the pipe wall, becoming independent of the Reynolds number.

Q4:

What is the relationship between the friction factor and Reynolds number for laminar flow?

Friction factor remains constant throughout the laminar regime regardless of changes in fluid velocity
The friction factor increases linearly with the Reynolds number during fully developed laminar flow conditions
Laminar flow friction factors are determined solely by the absolute roughness of the PVC pipe
The friction factor is inversely proportional to the Reynolds number in laminar flow

Correct Answer: Option D

For laminar flow in circular pipes, the Darcy friction factor is defined as f = 64/Re, showing an inverse relationship.

Q5:

Which parameter most significantly influences the friction factor in smooth PVC pipes?

The absolute roughness height of the PVC material is the only factor affecting friction
The Reynolds number is the primary variable influencing friction in smooth pipe flow
Fluid density variations are the most critical parameter for determining friction in pond systems
Pipe length is the dominant variable that dictates the friction factor in hydraulic calculations

Correct Answer: Option B

In smooth pipes like PVC, the friction factor is primarily a function of the Reynolds number, especially in the laminar and transition regimes.

Q6:

What happens to the velocity profile as flow transitions from laminar to turbulent?

The velocity profile becomes increasingly parabolic as the flow becomes more turbulent and chaotic
Flow velocity remains uniform across the pipe cross-section throughout the entire transition flow process
The velocity profile changes from a parabolic shape to a flatter turbulent profile
The maximum velocity shifts toward the pipe wall as the flow transitions into turbulence

Correct Answer: Option C

Laminar flow has a parabolic velocity profile, while turbulent flow has a flatter profile due to the mixing action of eddies.

Q7:

Why is the Hazen-Williams equation often preferred over Darcy-Weisbach for pond design?

It accounts for the temperature-dependent viscosity of water more accurately than the Darcy-Weisbach equation
It uses a constant roughness coefficient that simplifies calculations for water flow systems
Hazen-Williams is the only method that considers the internal diameter of schedule forty PVC
The equation eliminates the need to calculate the Reynolds number for any pipe flow

Correct Answer: Option B

Hazen-Williams is widely used in water distribution because it uses a constant C-factor, simplifying calculations compared to the Reynolds-dependent Darcy-Weisbach method.

Q8:

What is the effect of increasing fluid viscosity on the Reynolds number?

Higher viscosity causes the Reynolds number to increase proportionally with the fluid flow rate
The Reynolds number remains unaffected by changes in fluid viscosity within a closed pipe
Increasing fluid viscosity results in a lower Reynolds number for a given velocity
Increasing viscosity leads to a higher Reynolds number which promotes the onset of turbulence

Correct Answer: Option C

The Reynolds number is inversely proportional to dynamic viscosity; thus, higher viscosity reduces the Reynolds number.

Q9:

How does pipe diameter affect the Reynolds number in a constant flow system?

Increasing the pipe diameter decreases the Reynolds number due to reduced fluid flow velocity
The Reynolds number is independent of the pipe diameter in all hydraulic flow regimes
A larger pipe diameter increases the Reynolds number for a constant mass flow
Pipe diameter and Reynolds number share an inverse relationship in turbulent flow conditions only

Correct Answer: Option C

Since Reynolds number is proportional to velocity and diameter, and velocity decreases with the square of the diameter, the net effect of increasing diameter at constant mass flow is an increase in Re.

Q10:

What defines the ‘hydraulically smooth’ condition for a pipe surface?

Surface roughness is small enough to be contained within the viscous sublayer
The pipe wall is polished to a mirror finish to eliminate all friction losses
The pipe diameter is large enough to ignore the effects of wall surface irregularities
Flow velocity is low enough that the pipe surface roughness does not affect friction

Correct Answer: Option A

A pipe is hydraulically smooth if the roughness elements are submerged within the thin viscous sublayer near the wall, meaning they do not disrupt the flow.

Q11:

What is the significance of the viscous sublayer in turbulent pipe flow?

It represents the region where turbulent eddies are most intense and energy dissipation occurs
The viscous sublayer is the area where the fluid velocity is highest in the pipe
The sublayer thickness increases as the Reynolds number increases in a turbulent flow regime
It is a thin layer near the wall where flow remains laminar

Correct Answer: Option D

In turbulent flow, a very thin layer near the pipe wall remains laminar; this is known as the viscous sublayer.

Q12:

How does the friction factor change when flow moves from laminar to turbulent?

The friction factor decreases sharply as the flow becomes more turbulent and chaotic
The friction factor typically increases significantly during the transition to turbulent flow
Friction factor values remain constant across all flow regimes including laminar and turbulent
The friction factor becomes zero as the flow transitions into the fully turbulent regime

Correct Answer: Option B

The transition to turbulence introduces eddy-driven energy losses, which causes the friction factor to rise compared to the laminar regime.

Q13:

Which equation is used to calculate the friction factor for laminar flow?

The Darcy friction factor is calculated as sixty-four divided by Reynolds number
The Colebrook-White equation is the only valid method for determining laminar flow friction factors
The Blasius equation is used to calculate friction factors for all laminar flow conditions
The Hazen-Williams formula provides the exact friction factor for all laminar flow regimes

Correct Answer: Option A

For laminar flow in a circular pipe, the theoretical friction factor is exactly f = 64/Re.

Q14:

What is the impact of pipe roughness on friction in the laminar regime?

Pipe roughness has no measurable impact on friction in the laminar regime
Roughness increases the friction factor linearly as the Reynolds number increases in laminar flow
Roughness causes the laminar flow to become turbulent at lower Reynolds number thresholds
Increased roughness reduces the friction factor by creating micro-eddies along the pipe wall

Correct Answer: Option A

In laminar flow, the fluid moves in layers, and the surface roughness is not sufficient to disrupt these layers, making it irrelevant to friction.

Q15:

What is the primary cause of energy loss in a pipe system?

The gravitational potential energy of the water flowing through the horizontal pipe sections
The kinetic energy of the fluid particles moving at a constant velocity through pipes
Viscous shear stresses within the fluid and against the pipe walls
The pressure differential created by the pump at the start of the piping system

Correct Answer: Option C

Energy loss (head loss) in pipes is primarily due to the conversion of mechanical energy into heat through viscous shear forces.

Q16:

What does the Moody diagram represent in hydraulic engineering?

The variation of water density with temperature in closed loop pond filtration systems
The velocity distribution of fluid across the cross-section of a circular pipe
The relationship between friction factor, Reynolds number, and relative pipe roughness
The chemical compatibility of PVC pipe with various pond water treatment chemicals

Correct Answer: Option C

The Moody diagram is a graphical representation of the Darcy-Weisbach friction factor as a function of Reynolds number and relative roughness.

Q17:

How does fluid density affect the Reynolds number?

Higher fluid density increases the Reynolds number for a given flow velocity
Fluid density has no effect on the Reynolds number in any pipe flow regime
Increasing fluid density decreases the Reynolds number by increasing the internal flow resistance
Higher density fluids always result in laminar flow regardless of the pipe velocity

Correct Answer: Option A

The Reynolds number is directly proportional to density; thus, a denser fluid increases the Reynolds number.

Q18:

What is the definition of ‘fully developed’ flow in a pipe?

The velocity profile remains constant along the length of the pipe
The flow has reached a state where the pressure is equal at all points
The fluid has achieved a constant temperature throughout the entire pipe cross-section
The flow regime has transitioned from laminar to turbulent at the pipe entrance

Correct Answer: Option A

Fully developed flow occurs when the velocity profile no longer changes with distance along the pipe axis.

Q19:

What is the effect of pipe length on the friction factor?

Increasing the pipe length increases the friction factor due to cumulative wall resistance
The friction factor decreases as the pipe length increases in a turbulent flow regime
Pipe length does not directly affect the friction factor value
Pipe length is the most important variable in calculating the Darcy-Weisbach friction factor

Correct Answer: Option C

The friction factor is a dimensionless coefficient dependent on Reynolds number and roughness, not the length of the pipe itself.

Q20:

Which force dominates in the laminar flow regime?

Inertial forces are significantly higher than viscous forces in all laminar flow conditions
Viscous forces dominate over inertial forces in the laminar flow regime
Surface tension forces dominate the flow behavior in small diameter PVC pond pipes
Turbulent eddies are the primary force that drives the fluid in laminar flow

Correct Answer: Option B

Laminar flow is characterized by a low Reynolds number, meaning viscous forces are much stronger than inertial forces.

Schedule 40/80 PVC Geometry and Hydraulic Diameter

Q21:

How does the internal diameter of Schedule 80 PVC compare to Schedule 40?

Schedule 80 PVC has a larger internal diameter to accommodate higher pressure flow requirements
Schedule 80 PVC has a smaller internal diameter than Schedule 40 PVC
The internal diameter of both Schedule 40 and 80 PVC is identical for all sizes
The internal diameter of Schedule 80 is exactly double that of Schedule 40 pipe

Correct Answer: Option B

Schedule 80 pipe has thicker walls than Schedule 40, which results in a smaller internal diameter for the same nominal pipe size.

Q22:

What is the hydraulic diameter of a circular pipe?

It is defined as the square root of the cross-sectional area of the pipe
The hydraulic diameter is calculated by dividing the pipe circumference by the flow area
It is the average diameter measured from the outer wall of the PVC pipe
The hydraulic diameter is equal to the actual internal diameter of the pipe

Correct Answer: Option D

For a circular pipe flowing full, the hydraulic diameter is defined as 4A/P, which simplifies to the internal diameter.

Q23:

Why is the internal diameter critical for calculating head loss?

The internal diameter is only used to calculate the volume of water in the pipe
Head loss is inversely proportional to the fifth power of the internal diameter
Head loss is directly proportional to the internal diameter of the pipe in all cases
The internal diameter determines the maximum pressure the pipe can withstand before failing

Correct Answer: Option B

According to the Darcy-Weisbach equation, head loss is highly sensitive to diameter, specifically inversely proportional to the fifth power.

Q24:

What is the nominal pipe size (NPS) in PVC piping?

The exact measurement of the internal diameter of the pipe in inches or millimeters
A value representing the maximum flow capacity of the pipe in gallons per minute
The thickness of the pipe wall measured in millimeters for schedule forty PVC pipes
A designation that does not correspond to the actual internal or external diameter

Correct Answer: Option D

Nominal Pipe Size is a North American set of standards for pipes, where the number does not represent the actual physical dimensions.

Q25:

How does wall thickness affect the hydraulic performance of PVC?

Thicker walls improve hydraulic performance by smoothing the internal surface of the PVC pipe
Thicker walls decrease the friction factor by reducing the turbulence near the pipe wall
Thicker walls reduce the internal diameter, increasing velocity and friction head loss
The wall thickness is irrelevant to hydraulic calculations in standard pond plumbing design

Correct Answer: Option C

For a given nominal size, a thicker wall (Schedule 80) reduces the cross-sectional area, which increases velocity and friction losses.

Q26:

What is the relative roughness of PVC pipe?

A constant value that is independent of the pipe diameter or material type
A dimensionless number that represents the total friction loss in a pipe system
The measurement of the pipe surface texture relative to the fluid viscosity
A ratio of the absolute roughness height to the internal pipe diameter

Correct Answer: Option D

Relative roughness is defined as the ratio of the absolute roughness of the pipe material to its internal diameter.

Q27:

Why is the cross-sectional area important for hydraulic calculations?

The cross-sectional area is used to calculate the total weight of the pipe system
It determines the maximum temperature the pipe can withstand before it begins melting
It determines the fluid velocity for a given volumetric flow rate
The cross-sectional area is irrelevant to the calculation of head loss in pipes

Correct Answer: Option C

Velocity is calculated as flow rate divided by cross-sectional area; velocity is a key component in all head loss equations.

Q28:

What is the typical absolute roughness value for PVC pipe?

Exactly zero point one millimeters for all standard schedule forty PVC pipe materials
One millimeter for all types of plastic piping used in pond filtration systems
Approximately zero point zero zero one five millimeters for smooth PVC
Zero point zero five inches for all standard industrial grade PVC pipe materials

Correct Answer: Option C

PVC is considered a very smooth material, with an absolute roughness typically cited around 0.0015 mm.

Q29:

How does the wetted perimeter affect hydraulic diameter?

It is the denominator in the hydraulic diameter calculation for non-circular pipes
It is the length of the pipe that is submerged in the pond water
The wetted perimeter is used to calculate the friction factor in circular pipes only
The wetted perimeter is the distance between two pipe fittings in a system

Correct Answer: Option A

Hydraulic diameter is 4A/P, where P is the wetted perimeter; this is essential for non-circular cross-sections.

Q30:

What is the impact of using undersized pipe in a pond system?

Undersized pipe reduces the total friction loss by increasing the fluid velocity significantly
Smaller pipes increase the pressure in the system which improves the filtration efficiency
Increased fluid velocity leads to higher friction head loss and pump strain
Using undersized pipe decreases the Reynolds number and promotes laminar flow conditions

Correct Answer: Option C

Smaller pipes increase velocity, and since head loss is proportional to the square of velocity, this significantly increases friction losses.

Q31:

How do fittings like elbows affect the hydraulic diameter?

Elbows increase the effective hydraulic diameter by creating turbulence within the pipe fitting
Fittings introduce local losses that are not captured by hydraulic diameter alone
The hydraulic diameter of an elbow is always larger than the straight pipe section
Elbows decrease the hydraulic diameter by restricting the flow area at the joint

Correct Answer: Option B

Fittings cause minor losses due to flow separation and turbulence, which are distinct from the friction losses calculated using hydraulic diameter.

Q32:

What is the significance of the pipe wall thickness in PVC?

Wall thickness is only important for the structural support of the pipe in soil
It is the primary factor used to calculate the friction factor in turbulent flow
It determines the pressure rating and the internal diameter of the pipe
Wall thickness is irrelevant to the hydraulic performance of the PVC piping system

Correct Answer: Option C

Wall thickness dictates the pressure rating (Schedule) and directly reduces the internal diameter, impacting flow capacity.

Q33:

How does pipe aging affect the internal surface of PVC?

The internal surface of PVC becomes significantly rougher due to rapid chemical corrosion
PVC pipes develop internal scaling that drastically reduces the internal diameter over time
PVC remains relatively smooth over time compared to metal piping materials
PVC pipe surfaces become brittle and crack, leading to increased turbulence and friction

Correct Answer: Option C

Unlike metal pipes, PVC is resistant to corrosion and scaling, maintaining its smooth hydraulic properties for a long duration.

Q34:

What is the relationship between pipe diameter and flow velocity?

Velocity is inversely proportional to the square of the pipe diameter
Velocity is directly proportional to the pipe diameter for a constant flow rate
The flow velocity remains constant regardless of the pipe diameter in a system
Velocity is inversely proportional to the pipe diameter for a constant flow rate

Correct Answer: Option A

For a constant volumetric flow rate (Q = Av), velocity (v) is Q / (pi * D^2 / 4), making v proportional to 1/D^2.

Q35:

Why is the internal diameter of PVC pipe standardized?

To ensure that the pipe can withstand high pressure without bursting or leaking
To simplify the manufacturing process by using a single mold for all sizes
To reduce the cost of shipping and storage for large quantities of PVC
To ensure compatibility with standard fittings, valves, and plumbing components

Correct Answer: Option D

Standardization of dimensions is essential for the interchangeability of pipes, fittings, and valves across different manufacturers.

Q36:

What is the effect of pipe diameter on the Reynolds number?

Increasing the diameter decreases the Reynolds number for a constant flow rate
The Reynolds number is independent of the pipe diameter in all flow regimes
Increasing the diameter has no effect on the Reynolds number in turbulent flow
Increasing the diameter increases the Reynolds number for a constant flow rate

Correct Answer: Option D

Re = (rho * v * D) / mu. Since v = Q / (pi * D^2 / 4), substituting v gives Re proportional to 1/D. Wait, actually Re is proportional to 1/D. Let me re-verify: Re = (rho * (Q/A) * D) / mu = (rho * Q * D) / (mu * pi * D^2 / 4) = (4 * rho * Q) / (mu * pi * D). So Re is inversely proportional to D.

Q37:

What is the primary difference between Schedule 40 and 80 PVC?

Schedule 40 is made of a different chemical compound than Schedule 80 PVC
Schedule 80 has thicker walls and a higher pressure rating
Schedule 80 is designed for low pressure and Schedule 40 for high pressure
The two schedules are identical in all physical and hydraulic properties

Correct Answer: Option B

Schedule 80 pipe is designed for higher pressure applications and therefore has a thicker wall, which reduces the internal diameter.

Q38:

How does pipe diameter influence head loss in a system?

Larger diameters significantly reduce head loss for a given flow rate
Larger diameters increase head loss due to the increased volume of water inside
Pipe diameter has no effect on head loss in a closed piping system
Larger diameters increase head loss by creating more surface area for friction

Correct Answer: Option A

Because head loss is inversely proportional to the fifth power of the diameter, even small increases in diameter result in large reductions in head loss.

Q39:

What is the purpose of the ‘Schedule’ designation in PVC?

It indicates the length of the pipe section in standard manufacturing units
It indicates the wall thickness and the pressure rating of the pipe
The schedule number represents the maximum flow rate in gallons per minute
The schedule number is the internal diameter of the pipe in millimeters

Correct Answer: Option B

The Schedule designation (e.g., 40, 80) is a standard that defines the wall thickness, which in turn determines the pressure rating.

Q40:

What is the hydraulic diameter for a non-circular conduit?

The average of the width and height of the conduit cross-section
The square root of the cross-sectional area of the conduit shape
Four times the cross-sectional area divided by the wetted perimeter
The perimeter of the conduit divided by the area of the cross-section

Correct Answer: Option C

The hydraulic diameter is defined as 4A/P, which allows for the calculation of friction in non-circular shapes using circular pipe formulas.

Darcy-Weisbach Friction Factor Methods

Q41:

In the Darcy-Weisbach equation, what is the primary physical significance of the friction factor f?

It serves as a constant multiplier for the absolute roughness of the pipe interior
It represents the dimensionless ratio of wall shear stress to dynamic pressure head
It defines the ratio of kinematic viscosity to the average velocity of the fluid
It quantifies the total energy loss per unit length of the pipe cross section

Correct Answer: Option B

The Darcy-Weisbach friction factor f is defined by the relationship between wall shear stress and the kinetic energy of the fluid, making it a dimensionless measure of flow resistance.

Q42:

For laminar flow in a smooth PVC pipe, how is the Darcy friction factor f calculated?

It is derived from the Colebrook-White equation using an iterative numerical approximation method
It remains constant regardless of the fluid velocity or the pipe diameter being utilized
It is determined by the simple relationship of sixty-four divided by Reynolds number
It depends exclusively on the relative roughness of the pipe wall and fluid density

Correct Answer: Option C

In laminar flow, where the Reynolds number is less than 2300, the friction factor is theoretically derived as f = 64/Re.

Q43:

Which parameter is required to determine the friction factor using the Moody diagram?

The absolute temperature of the water and the total length of the pipe run
The pipe wall thickness and the specific gravity of the fluid being pumped through
The total dynamic head and the pump efficiency rating at the operating flow rate
The Reynolds number and the relative roughness of the pipe interior surface

Correct Answer: Option D

The Moody diagram plots the friction factor as a function of the Reynolds number and the relative roughness (e/D) of the pipe.

Q44:

What does the Colebrook-White equation solve for in hydraulic pipe design?

It calculates the exact pressure drop across a series of complex pond filtration manifolds
It determines the maximum flow velocity allowed before cavitation occurs in the pump impeller
It estimates the total head loss by considering only the pipe diameter and length
It provides an implicit solution for the friction factor in turbulent flow regimes

Correct Answer: Option D

The Colebrook-White equation is the standard implicit formula used to calculate the friction factor for turbulent flow in pipes.

Q45:

Why is the Darcy-Weisbach equation preferred over empirical formulas for koi pond hydraulics?

It is physically based and valid for any fluid and pipe material
It requires significantly less computational power than the Hazen-Williams empirical flow equation method
It automatically accounts for the presence of biological biofilm buildup on the pipe walls
It provides a direct measurement of the pump efficiency based on the pipe diameter

Correct Answer: Option A

Darcy-Weisbach is a fundamental equation based on fluid mechanics principles, making it universally applicable regardless of the fluid properties or pipe material.

Q46:

How does increasing the pipe diameter affect the Darcy friction factor in turbulent flow?

It decreases the relative roughness, typically leading to a lower friction factor
It increases the friction factor because the fluid velocity profile becomes more fully developed
It has no effect on the friction factor as it is independent of pipe diameter
It causes the friction factor to increase proportionally with the square of the pipe radius

Correct Answer: Option A

Relative roughness is defined as absolute roughness divided by diameter (e/D). Increasing the diameter decreases this ratio, which generally reduces the friction factor in turbulent flow.

Q47:

What is the primary limitation of the Swamee-Jain equation in hydraulic design?

It cannot be used for pipes with a diameter smaller than two inches in diameter
It fails to account for the kinematic viscosity of water at different pond temperatures
It is only accurate for laminar flow conditions where the Reynolds number is very low
It is an explicit approximation of the implicit Colebrook-White friction factor equation

Correct Answer: Option D

The Swamee-Jain equation is an explicit approximation that avoids the iterative process required by the Colebrook-White equation while maintaining high accuracy.

Q48:

In the context of Darcy-Weisbach, what does the term ‘relative roughness’ represent?

The ratio of the average pipe wall roughness height to the pipe diameter
The comparison between the pipe internal diameter and the total length of the run
The measurement of the fluid density relative to the density of standard pond water
The difference between the friction factor of PVC and the friction factor of steel

Correct Answer: Option A

Relative roughness is defined as the absolute roughness height (e) divided by the internal pipe diameter (D).

Q49:

How does fluid temperature influence the Darcy friction factor in a PVC pipe?

It directly changes the absolute roughness of the PVC pipe wall at high temperatures
It changes the kinematic viscosity, which alters the Reynolds number and friction factor
It has no impact on the friction factor because PVC is a thermal insulator material
It increases the friction factor by causing the pipe to expand and become more porous

Correct Answer: Option B

Temperature affects the kinematic viscosity of water. Since the Reynolds number depends on viscosity, temperature changes will shift the Reynolds number and consequently the friction factor.

Q50:

What happens to the friction factor as the flow transitions from laminar to turbulent?

The friction factor drops to zero because the flow becomes perfectly uniform and stable
The friction factor remains constant throughout the transition because the pipe wall is smooth
The friction factor increases significantly as the flow enters the critical transition zone
The friction factor decreases because turbulent flow is more efficient than laminar flow regimes

Correct Answer: Option C

The transition from laminar to turbulent flow involves a sharp increase in the friction factor as the flow profile changes from parabolic to a more uniform distribution.

Q51:

Which flow regime is characterized by a friction factor that is independent of pipe roughness?

The fully turbulent flow regime where the Reynolds number is extremely high and constant
The transition zone between laminar and turbulent flow where the friction factor is unstable
The supercritical flow regime where the velocity exceeds the speed of sound in water
The laminar flow regime where viscous forces dominate over the inertial forces

Correct Answer: Option D

In laminar flow, the friction factor is a function only of the Reynolds number (f = 64/Re) and is independent of the pipe wall roughness.

Q52:

What is the effect of biofilm accumulation on the Darcy friction factor in PVC pipes?

It increases the absolute roughness, which leads to a higher friction factor value
It decreases the friction factor by smoothing out the microscopic irregularities of the pipe
It has no measurable effect on the friction factor because biofilm is very thin
It causes the friction factor to fluctuate randomly based on the thickness of the growth

Correct Answer: Option A

Biofilm buildup increases the effective absolute roughness of the pipe interior, which increases the friction factor and results in higher head loss.

Q53:

In Darcy-Weisbach calculations, what is the standard unit for the absolute roughness parameter?

It is expressed as a dimensionless ratio of the pipe diameter to the flow velocity
It is typically expressed in millimeters or feet depending on the system units
It is measured in units of pressure such as pounds per square inch of force
It is defined by the kinematic viscosity of the fluid multiplied by the flow rate

Correct Answer: Option B

Absolute roughness (e) is a length measurement representing the average height of surface irregularities, typically given in millimeters or feet.

Q54:

Why is the Darcy-Weisbach equation considered more accurate than the Hazen-Williams equation?

It accounts for the fluid’s viscosity and the flow’s specific Reynolds number
It is easier to solve manually without the need for a calculator or computer software
It was specifically designed for water flow in PVC pipes used in pond systems
It ignores the effects of pipe roughness which simplifies the overall hydraulic design process

Correct Answer: Option A

Darcy-Weisbach is physically based and incorporates the Reynolds number, making it accurate across all flow regimes and fluid types, unlike the empirical Hazen-Williams.

Q55:

What is the significance of the ‘smooth pipe’ line on the Moody diagram?

It indicates the point where the flow becomes fully turbulent and independent of the viscosity
It shows the maximum possible friction factor for any pipe material used in pond construction
It represents the lower bound of the friction factor for a given Reynolds number
It marks the transition from laminar flow to the critical zone in all pipe types

Correct Answer: Option C

The smooth pipe line on the Moody diagram represents the minimum friction factor achievable for a specific Reynolds number, as roughness cannot be zero.

Q56:

How does the Darcy-Weisbach equation handle minor losses in a pond plumbing system?

Minor losses are added to the major losses using specific loss coefficients for fittings
Minor losses are automatically included in the friction factor calculation for the pipe length
Minor losses are ignored because they are negligible compared to the major pipe friction losses
Minor losses are calculated by multiplying the pipe length by the total number of fittings

Correct Answer: Option A

In hydraulic design, total head loss is the sum of major losses (pipe friction) and minor losses (fittings, valves, etc.), which are calculated using K-factors.

Q57:

What is the primary variable that changes when calculating the friction factor for different pipe materials?

The kinematic viscosity of the water flowing through the different pipe material types
The absolute roughness value used to determine the relative roughness of the pipe
The gravitational constant which varies based on the material density of the pipe wall
The Reynolds number which is calculated differently for steel versus PVC pipe materials

Correct Answer: Option B

Different materials have different surface textures, represented by the absolute roughness (e) parameter, which changes the relative roughness (e/D) and the resulting friction factor.

Q58:

Which condition must be met to use the Blasius equation for the friction factor?

The pipe must be made of a specific type of high-density polyethylene plastic material
The water must be at a temperature of exactly twenty degrees Celsius for accuracy
The pipe diameter must be greater than six inches to ensure fully developed flow
The flow must be turbulent with a Reynolds number below one hundred thousand

Correct Answer: Option D

The Blasius equation is a simple explicit formula for the friction factor in smooth pipes for turbulent flow where Re < 100,000.

Q59:

What is the relationship between the friction factor and the head loss in a pipe?

Head loss is directly proportional to the friction factor in the Darcy-Weisbach equation
Head loss is inversely proportional to the square of the friction factor in the system
Head loss is independent of the friction factor and depends only on the pipe length
Head loss is equal to the friction factor multiplied by the pipe diameter and velocity

Correct Answer: Option A

The Darcy-Weisbach equation (h = f * (L/D) * (v^2/2g)) shows that head loss is directly proportional to the friction factor (f).

Q60:

In the context of Darcy-Weisbach, what does the term ‘fully developed flow’ imply?

The velocity profile remains constant along the length of the pipe section
The flow has reached the maximum possible velocity allowed by the pump’s power rating
The pipe is completely filled with water and there is no air trapped inside
The water temperature has stabilized and the viscosity is constant throughout the pipe run

Correct Answer: Option A

Fully developed flow occurs when the velocity profile no longer changes with distance along the pipe, which is a requirement for standard friction factor calculations.

Hazen-Williams Coefficient Use and Limitations

Q61:

What is the primary limitation of the Hazen-Williams equation in hydraulic engineering?

It requires the use of a complex iterative numerical solver for every single calculation
It is restricted to pipes with a diameter of less than two inches in size
It is only valid for water and does not account for fluid viscosity
It cannot be used for turbulent flow regimes which are common in pond plumbing systems

Correct Answer: Option C

The Hazen-Williams equation is empirical and specifically calibrated for water at standard temperatures, failing to account for variations in fluid viscosity.

Q62:

What is the typical Hazen-Williams C-factor for new, smooth PVC pipe?

The value is generally considered to be around one hundred and fifty
The value is typically set to zero because PVC has no internal surface roughness
The value is usually around eighty for most standard Schedule 40 PVC pipe materials
The value varies between two hundred and three hundred depending on the pipe diameter

Correct Answer: Option A

For new, smooth plastic pipes like PVC, the Hazen-Williams C-factor is typically assigned a value of 150.

Q63:

How does the C-factor in the Hazen-Williams equation change as a pipe ages?

The C-factor decreases due to increased roughness and potential biofilm or scale buildup
The C-factor increases because the pipe walls become polished by the constant water flow
The C-factor remains constant because PVC does not degrade or change over time periods
The C-factor fluctuates based on the temperature of the water flowing through the pipe

Correct Answer: Option A

As pipes age, internal surface roughness increases due to scaling or biofilm, which reduces the C-factor and increases friction losses.

Q64:

Why is the Hazen-Williams equation popular for designing pond plumbing systems?

It is the only equation that accounts for the complex geometry of pond fittings
It is mathematically superior to the Darcy-Weisbach equation for all types of fluid flow
It is simple to use and provides reasonably accurate results for water flow
It is required by international building codes for all residential pond construction projects

Correct Answer: Option C

Hazen-Williams is an empirical formula that is easy to use and sufficiently accurate for water flow in common pipe sizes used in pond systems.

Q65:

What happens to the calculated head loss if the C-factor is overestimated?

The calculated head loss will be higher than the actual head loss in the system
The calculated head loss will remain unchanged regardless of the C-factor value used
The calculated head loss will fluctuate based on the velocity of the water flow
The calculated head loss will be lower than the actual head loss experienced

Correct Answer: Option D

Since the C-factor is in the denominator of the Hazen-Williams equation, a higher C-factor results in a lower calculated head loss.

Q66:

Which pipe material would typically have the lowest Hazen-Williams C-factor?

New smooth PVC pipe used for high-pressure pond filtration and circulation systems
Corroded cast iron pipe with significant internal scaling and surface roughness
Polished stainless steel pipe with a very low friction coefficient for water flow
High-density polyethylene pipe which is known for its extremely smooth interior surface

Correct Answer: Option B

Corroded cast iron has a very rough interior, resulting in a low C-factor (often 60-100), compared to smooth PVC (150).

Q67:

Does the Hazen-Williams equation account for the Reynolds number of the flow?

Yes, it uses the Reynolds number to determine the friction factor for the pipe
Yes, it is a fundamental equation that is derived directly from the Reynolds number
No, it is an empirical equation that does not include the Reynolds number
No, it only uses the Reynolds number for laminar flow conditions in small pipes

Correct Answer: Option C

The Hazen-Williams equation is purely empirical and does not incorporate the Reynolds number, which is why it is less accurate than Darcy-Weisbach.

Q68:

What is the effect of water temperature on the Hazen-Williams C-factor?

The C-factor increases as the water temperature rises due to decreased fluid density
The C-factor decreases as the water temperature drops because the water becomes thicker
The C-factor is highly sensitive to temperature changes and must be adjusted accordingly
The C-factor is generally considered independent of the water temperature in this equation

Correct Answer: Option D

The Hazen-Williams equation does not include a term for viscosity or temperature, so the C-factor is treated as a constant for a given pipe material.

Q69:

When is it inappropriate to use the Hazen-Williams equation for pond hydraulics?

When the pipe diameter is larger than four inches in the pond circulation system
When the flow velocity is below five feet per second in the PVC pipe
When the pipe is made of a material other than standard Schedule 40 PVC
When the fluid is not water or the flow is highly viscous

Correct Answer: Option D

Because Hazen-Williams is calibrated specifically for water, it is inaccurate for other fluids or liquids with significantly different viscosities.

Q70:

How does the Hazen-Williams equation treat the relationship between head loss and flow rate?

Head loss is directly proportional to the flow rate without any exponential power factor
Head loss is proportional to the flow rate raised to the 1.85 power
Head loss is proportional to the square of the flow rate in all pipe systems
Head loss is proportional to the cube of the flow rate for turbulent water flow

Correct Answer: Option B

The Hazen-Williams equation defines head loss as being proportional to the flow rate (Q) raised to the power of 1.85.

Q71:

What is the primary advantage of using the Hazen-Williams equation over Darcy-Weisbach?

It accounts for the minor losses of fittings more accurately than the Darcy-Weisbach
It is much simpler to calculate because it does not require iterative methods
It is universally accepted by all international engineering standards for every fluid type
It automatically adjusts for the age of the pipe without needing a C-factor

Correct Answer: Option B

The main benefit of Hazen-Williams is its simplicity and lack of need for iteration, which makes it very convenient for quick hydraulic calculations.

Q72:

How does pipe diameter influence head loss in the Hazen-Williams equation?

Head loss is directly proportional to the pipe diameter raised to the 1.85 power
Head loss is independent of the pipe diameter and depends only on the flow rate
Head loss is inversely proportional to the pipe diameter raised to the 4.87 power
Head loss is inversely proportional to the pipe diameter raised to the 2.0 power

Correct Answer: Option C

The Hazen-Williams equation shows that head loss is inversely proportional to the diameter (D) raised to the power of 4.87.

Q73:

Why might a designer choose a lower C-factor for a long-term pond project?

To ensure that the pump operates at its maximum possible efficiency at all times
To provide a safety margin for future pipe roughness and biofilm accumulation
To reduce the total cost of the plumbing materials used in the pond construction
To account for the high viscosity of the water during the winter season months

Correct Answer: Option B

Using a conservative (lower) C-factor accounts for the inevitable increase in pipe roughness over time, ensuring the system remains functional.

Q74:

What is the standard unit system for the Hazen-Williams equation in the United States?

It is typically used with US Customary units like gallons per minute
It is exclusively designed for SI units such as liters per second and meters
It is a dimensionless equation that does not require any specific unit system usage
It is only compatible with metric units because it was developed in Europe originally

Correct Answer: Option A

While it can be adapted, the Hazen-Williams equation is most commonly associated with US Customary units like GPM, feet, and inches.

Q75:

How does the Hazen-Williams equation handle the transition between laminar and turbulent flow?

It automatically switches to a different formula when the Reynolds number is below two thousand
It is perfectly accurate for both laminar and turbulent flow regimes in all pipe sizes
It uses a correction factor to account for the change in the velocity profile shape
It does not distinguish between flow regimes and is generally inaccurate for laminar flow

Correct Answer: Option D

Hazen-Williams is an empirical formula for turbulent water flow and does not account for the physics of laminar flow or the transition between regimes.

Q76:

What is the impact of using Hazen-Williams for very small diameter pipes?

It provides the most accurate results for small pipes because the flow is laminar
It is the preferred method for small pipes because it simplifies the design process
It may lead to significant errors because the empirical constants are not calibrated
It produces the same results as the Darcy-Weisbach equation for all small pipes

Correct Answer: Option C

Hazen-Williams was calibrated for larger water distribution pipes; applying it to very small pipes often results in inaccurate head loss predictions.

Q77:

Which of the following is a common C-factor for old, tuberculated steel pipe?

The value is often as low as sixty to eighty in practice
The value is typically around one hundred and fifty for all steel pipe types
The value is usually two hundred because of the smooth interior of the steel
The value is zero because the pipe is completely blocked by the tuberculation growth

Correct Answer: Option A

Tuberculation significantly increases roughness, drastically reducing the C-factor compared to new, smooth pipes.

Q78:

What is the primary reason for the 1.85 exponent in the Hazen-Williams equation?

It represents the physical relationship between the fluid density and the pipe wall friction
It is an empirical fit to match experimental data for turbulent water flow
It is derived from the Navier-Stokes equations for fluid flow in a circular pipe
It accounts for the gravitational acceleration constant in the total head loss calculation

Correct Answer: Option B

The exponent 1.85 is purely empirical, chosen to best fit experimental data for water flowing in pipes within the turbulent regime.

Q79:

How does the Hazen-Williams equation compare to the Darcy-Weisbach equation for high-velocity flow?

It becomes more accurate because the flow is more turbulent and easier to predict
It is the only equation that can handle high-velocity flow without causing cavitation
It becomes less accurate as the velocity increases and deviates from the calibrated range
It is independent of velocity, so it remains accurate regardless of the flow speed

Correct Answer: Option C

Because Hazen-Williams is empirical, its accuracy degrades as conditions (like velocity) move outside the range of the original experimental data.

Q80:

What is the main risk of using a high C-factor for a pond system design?

The pump may be oversized, leading to excessive energy consumption and high electricity costs
The pump may be undersized, leading to inadequate flow in the pond system
The pipe may burst due to the high pressure generated by the pump in operation
The water quality may suffer because the flow rate is too high for the filter

Correct Answer: Option B

If a designer assumes a high C-factor (low friction), they will calculate a lower head loss than will actually occur, potentially leading to an undersized pump.

Laminar Flow Resistance and Viscous Effects

Q81:

In a laminar flow regime within Schedule 40 PVC, how does the friction factor f relate to the Reynolds number Re?

The friction factor remains constant regardless of the Reynolds number in laminar flow conditions.
The friction factor is inversely proportional to the square root of the Reynolds number value.
The friction factor is defined by the relationship f equals sixty-four divided by Re.
The friction factor increases linearly as the Reynolds number increases within the laminar flow regime.

Correct Answer: Option C

For fully developed laminar flow in circular pipes, the Darcy friction factor is theoretically derived as f = 64/Re, independent of pipe roughness.

Q82:

What is the primary physical mechanism driving energy loss in laminar flow through koi pond piping?

Energy loss is dominated by viscous shear stresses between adjacent fluid layers in motion.
Energy loss is primarily caused by the collision of water molecules against the pipe wall surface.
Energy loss is driven by the formation of turbulent eddies that dissipate kinetic energy into heat.
Energy loss is determined by the gravitational potential energy difference between the pond and the filter.

Correct Answer: Option A

In laminar flow, fluid moves in parallel layers with no cross-mixing, so energy dissipation is entirely due to the internal viscosity of the fluid.

Q83:

At what Reynolds number value does the transition from laminar to turbulent flow typically begin in smooth PVC pipes?

The transition to turbulent flow typically begins at a Reynolds number of exactly five hundred units.
The transition to turbulent flow typically begins at a Reynolds number of ten thousand or higher.
The transition to turbulent flow typically begins at a Reynolds number of approximately two thousand.
The transition to turbulent flow typically begins at a Reynolds number of one hundred and fifty.

Correct Answer: Option C

While transition can vary based on disturbances, the critical Reynolds number for pipe flow is generally accepted to be around 2000 to 2300.

Q84:

How does the velocity profile of laminar flow in a PVC pipe differ from that of turbulent flow?

Laminar flow exhibits a uniform velocity profile whereas turbulent flow shows a highly skewed parabolic profile.
Laminar flow exhibits a logarithmic velocity profile whereas turbulent flow shows a perfectly linear velocity profile.
Laminar flow exhibits a flatter velocity profile whereas turbulent flow shows a sharp parabolic velocity profile.
Laminar flow exhibits a parabolic velocity profile whereas turbulent flow shows a much flatter profile.

Correct Answer: Option D

Laminar flow in a pipe follows a parabolic distribution due to viscous forces, while turbulent flow is flatter due to momentum mixing.

Q85:

Why is pipe roughness considered negligible when calculating head loss for laminar flow in PVC piping?

Viscous forces dominate the flow, preventing fluid interaction with the pipe wall surface irregularities.
Pipe roughness is only relevant when the fluid velocity exceeds the speed of sound in water.
Pipe roughness is ignored because PVC is manufactured with a perfectly smooth internal surface finish.
Pipe roughness is negligible because laminar flow only occurs in pipes with very large diameters.

Correct Answer: Option A

In laminar flow, the velocity at the wall is zero, and the viscous sublayer is thick enough to shield the flow from surface roughness.

Q86:

What is the effect of increasing fluid viscosity on the Reynolds number in a koi pond pipe?

Increasing fluid viscosity results in a higher Reynolds number, promoting more stable laminar flow conditions.
Increasing fluid viscosity results in a lower Reynolds number, promoting more stable laminar flow conditions.
Increasing fluid viscosity results in a lower Reynolds number, promoting more chaotic turbulent flow conditions.
Increasing fluid viscosity results in a higher Reynolds number, promoting more chaotic turbulent flow conditions.

Correct Answer: Option B

The Reynolds number is inversely proportional to dynamic viscosity; thus, higher viscosity decreases the Reynolds number, stabilizing the flow.

Q87:

Which equation is used to calculate head loss specifically for laminar flow in a circular pipe?

The Darcy-Weisbach equation is used to calculate head loss for laminar flow in circular pipes.
The Hazen-Williams equation is used to calculate head loss for laminar flow in circular pipes.
The Manning equation is used to calculate head loss for laminar flow in circular pipes.
The Hagen-Poiseuille equation is used to calculate head loss for laminar flow in pipes.

Correct Answer: Option D

The Hagen-Poiseuille equation specifically describes the pressure drop in a fluid flowing through a long cylindrical pipe under laminar conditions.

Q88:

How does the hydraulic gradient change in laminar flow when the flow rate is doubled?

The hydraulic gradient doubles because head loss is directly proportional to the flow velocity.
The hydraulic gradient quadruples because head loss is proportional to the square of the velocity.
The hydraulic gradient remains constant because laminar flow is independent of the flow rate changes.
The hydraulic gradient decreases by half because head loss is inversely proportional to the velocity.

Correct Answer: Option A

In laminar flow, head loss is linearly proportional to velocity, so doubling the velocity results in a doubling of the head loss.

Q89:

What role does the pipe diameter play in the transition from laminar to turbulent flow?

Larger pipe diameters increase the Reynolds number, making turbulent flow more likely at lower velocities.
Larger pipe diameters decrease the Reynolds number, making turbulent flow more likely at lower velocities.
Larger pipe diameters have no effect on the Reynolds number or the transition to turbulence.
Smaller pipe diameters increase the Reynolds number, making turbulent flow more likely at lower velocities.

Correct Answer: Option A

Since Re = (v * D) / kinematic viscosity, increasing the diameter D increases the Reynolds number for a given velocity v.

Q90:

Why is the Darcy-Weisbach equation technically applicable to both laminar and turbulent flow regimes?

It uses a constant friction factor that is valid for all possible flow conditions in pipes.
It uses a friction factor that adjusts based on the Reynolds number and pipe roughness.
It is only applicable to laminar flow because it assumes a perfectly parabolic velocity distribution profile.
It is only applicable to turbulent flow because it assumes a constant friction factor for all.

Correct Answer: Option B

The Darcy-Weisbach equation is universal; the friction factor f is the variable that accounts for the flow regime (laminar vs. turbulent).

Q91:

What is the impact of temperature on laminar flow resistance in a koi pond pipe?

Higher temperatures increase water viscosity, which raises the Reynolds number and decreases laminar flow stability.
Lower temperatures decrease water viscosity, which lowers the Reynolds number and increases laminar flow stability.
Higher temperatures decrease water viscosity, which lowers the Reynolds number and increases laminar flow stability.
Higher temperatures decrease water viscosity, which raises the Reynolds number and decreases laminar flow stability.

Correct Answer: Option C

Water viscosity decreases as temperature increases. Since Re = (v * D) / kinematic viscosity, a lower viscosity increases the Reynolds number.

Q92:

In a laminar flow scenario, what is the relationship between the average velocity and the maximum velocity?

The average velocity is equal to the maximum velocity at the pipe centerline in laminar flow.
The average velocity is one-third of the maximum velocity at the pipe centerline in laminar flow.
The average velocity is two-thirds of the maximum velocity at the pipe centerline in laminar flow.
The average velocity is exactly half of the maximum velocity at the pipe centerline.

Correct Answer: Option D

For laminar flow in a circular pipe, the velocity profile is a parabola, and the average velocity is 0.5 times the peak centerline velocity.

Q93:

How does the presence of a 90-degree elbow affect laminar flow compared to a straight pipe?

The elbow forces the flow to become turbulent regardless of the velocity or pipe diameter.
The elbow reduces the energy loss by straightening the fluid layers before they exit the.
The elbow introduces secondary flows that can disrupt the laminar profile and increase energy loss.
The elbow causes the fluid to accelerate, which decreases the friction factor in the pipe.

Correct Answer: Option C

Even in laminar flow, fittings like elbows create secondary circulation patterns that deviate from the ideal parabolic profile, increasing head loss.

Q94:

What is the significance of the ‘entrance length’ in laminar pipe flow?

It is the distance required for the velocity profile to become fully developed and parabolic.
It is the distance required for the flow to transition from laminar to fully turbulent flow.
It is the distance required for the pressure to drop to zero at the pipe outlet.
It is the distance required for the fluid to reach its maximum possible velocity in pipes.

Correct Answer: Option A

The entrance length is the region where the velocity profile is developing; beyond this point, the profile remains constant (fully developed).

Q95:

Why is laminar flow rarely achieved in standard koi pond filtration systems?

Laminar flow is avoided because it prevents the effective filtration of debris in pond systems.
Laminar flow requires extremely high pressures that standard pond pumps are unable to provide safely.
Laminar flow is only possible in pipes with diameters smaller than one-quarter of an inch.
Flow rates and pipe diameters typically result in Reynolds numbers well above the laminar threshold.

Correct Answer: Option D

Typical pond flow velocities and pipe sizes (1.5″ to 3″) result in Reynolds numbers in the thousands, placing them in the turbulent regime.

Q96:

What happens to the friction factor if the flow remains laminar but the pipe diameter is reduced?

The friction factor increases because the Reynolds number decreases as the pipe diameter is reduced.
The friction factor decreases because the Reynolds number increases as the pipe diameter is reduced.
The friction factor increases because the pipe wall roughness becomes more significant in smaller pipes.
The friction factor decreases because the fluid velocity must increase to maintain the same flow.

Correct Answer: Option A

Since f = 64/Re and Re = (v * D) / kinematic viscosity, reducing D reduces Re, which in turn increases the friction factor f.

Q97:

How does fluid density influence the friction factor in laminar flow?

Fluid density is directly proportional to the friction factor in the laminar flow regime calculation.
Fluid density is inversely proportional to the friction factor in the laminar flow regime calculation.
Fluid density determines the transition point where laminar flow becomes turbulent in the pipe.
Fluid density does not directly influence the friction factor in the laminar flow regime.

Correct Answer: Option D

In laminar flow, f = 64/Re. Since Re = (rho * v * D) / dynamic viscosity, the density rho cancels out when calculating the friction factor.

Q98:

What is the primary characteristic of the fluid motion in a laminar flow regime?

Fluid particles move in chaotic, swirling patterns that mix the fluid throughout the pipe cross-section.
Fluid particles move in smooth, parallel layers with no macroscopic mixing between them.
Fluid particles move in a pulsating manner that matches the frequency of the pond pump.
Fluid particles move in a stationary state where the velocity is zero at all points.

Correct Answer: Option B

Laminar flow is defined by the absence of cross-flow; fluid layers slide over one another without mixing, maintaining a smooth, orderly path.

Q99:

Which parameter is most critical for determining if flow in a pond pipe is laminar?

The pipe length is the critical parameter for determining if the flow is laminar or.
The pipe material is the critical parameter for determining if the flow is laminar or.
The Reynolds number is the critical dimensionless parameter for determining the flow regime type.
The pump head pressure is the critical parameter for determining if the flow is laminar.

Correct Answer: Option C

The Reynolds number (Re) is the standard dimensionless ratio used in fluid mechanics to predict the flow regime (laminar, transitional, or turbulent).

Q100:

What is the effect of a very long pipe on the laminar flow regime?

A very long pipe has no effect on the laminar flow profile compared to short.
A very long pipe ensures the flow reaches a fully developed, stable laminar velocity profile.
A very long pipe causes the fluid to heat up, changing the laminar flow characteristics.
A very long pipe causes the fluid to cavitate, destroying the laminar flow regime entirely.

Correct Answer: Option B

Flow requires a certain distance (entrance length) to become fully developed; a long pipe ensures this state is maintained throughout the length.

Turbulent Flow, Roughness, and Moody Analysis

Q101:

What does the Moody chart represent in the context of PVC pipe hydraulics?

It plots the fluid velocity against the pipe diameter to determine the maximum flow rate.
It plots the pump head pressure against the flow rate to determine the system efficiency.
It plots the Darcy friction factor against the Reynolds number and relative pipe roughness.
It plots the water temperature against the viscosity to determine the fluid density changes.

Correct Answer: Option C

The Moody chart is a graphical representation of the Colebrook-White equation, relating friction factor, Reynolds number, and relative roughness.

Q102:

How is the relative roughness of a PVC pipe defined for Moody analysis?

It is the ratio of the pipe’s wall thickness to the internal diameter of pipe.
It is the ratio of the friction factor to the Reynolds number of the flow.
It is the ratio of the pipe’s absolute roughness to its internal pipe diameter.
It is the ratio of the water density to the pipe material density in kilograms.

Correct Answer: Option C

Relative roughness is defined as epsilon/D, where epsilon is the absolute roughness height and D is the internal pipe diameter.

Q103:

Why is the friction factor in turbulent flow dependent on the pipe’s internal roughness?

Turbulent eddies penetrate the viscous sublayer, causing the fluid to interact with wall irregularities.
Turbulent flow is always independent of pipe roughness regardless of the Reynolds number value reached.
Turbulent flow causes the pipe material to degrade, which increases the roughness over time period.
Turbulent flow creates a vacuum at the wall, making the roughness irrelevant to the friction.

Correct Answer: Option A

In turbulent flow, the viscous sublayer is very thin; surface roughness protrusions can extend into the flow, increasing drag.

Q104:

What is the typical absolute roughness value for clean, new Schedule 40 PVC pipe?

The absolute roughness is approximately zero point one millimeters for new PVC pipe material.
The absolute roughness is approximately zero point five millimeters for new PVC pipe material.
The absolute roughness is approximately one point zero millimeters for new PVC pipe material.
The absolute roughness is approximately zero point zero zero one five millimeters for PVC.

Correct Answer: Option D

PVC is considered a ‘smooth’ pipe material, with an absolute roughness (epsilon) typically cited around 0.0015 mm.

Q105:

In the fully turbulent zone of the Moody chart, what is the behavior of the friction factor?

The friction factor becomes constant and depends only on the relative roughness of pipe.
The friction factor continues to decrease as the Reynolds number increases in the turbulent zone.
The friction factor continues to increase as the Reynolds number increases in the turbulent zone.
The friction factor fluctuates randomly as the Reynolds number increases in the turbulent zone.

Correct Answer: Option A

At very high Reynolds numbers, the friction factor curves on the Moody chart become horizontal, indicating independence from the Reynolds number.

Q106:

How does the Colebrook-White equation determine the friction factor for turbulent flow?

It is an explicit equation that provides a direct solution for the friction factor value.
It is a linear equation that assumes the friction factor is constant for all flows.
It is an implicit equation requiring iterative numerical methods to solve for the friction factor.
It is a graphical equation that requires the use of a ruler and a calculator.

Correct Answer: Option C

The Colebrook-White equation is implicit (f appears on both sides), necessitating iterative solvers like Newton-Raphson to find the friction factor.

Q107:

What is the primary difference between Schedule 40 and Schedule 80 PVC regarding friction?

Schedule 80 has a larger internal diameter, which decreases flow velocity and total head loss.
Schedule 80 has a higher absolute roughness, which increases the friction factor for all flows.
Schedule 80 has a lower absolute roughness, which decreases the friction factor for all flows.
Schedule 80 has a smaller internal diameter, which increases flow velocity and total head loss.

Correct Answer: Option D

Schedule 80 pipe has thicker walls than Schedule 40, resulting in a smaller internal diameter for the same nominal pipe size.

Q108:

What happens to the friction factor as the Reynolds number increases in the transition zone?

The friction factor increases as the Reynolds number increases within the turbulent transition zone.
The friction factor decreases as the Reynolds number increases within the turbulent transition zone.
The friction factor remains constant as the Reynolds number increases within the turbulent transition zone.
The friction factor is independent of the Reynolds number within the turbulent transition zone.

Correct Answer: Option B

In the transition zone between smooth and fully rough turbulent flow, the friction factor decreases as the Reynolds number increases.

Q109:

Why is the Swamee-Jain equation useful for pond designers?

It provides a more accurate calculation of head loss than the Darcy-Weisbach equation for pipes.
It provides an explicit approximation of the Colebrook-White equation, avoiding the need for iteration.
It is specifically designed for laminar flow calculations in very small diameter pond tubing.
It eliminates the need to know the pipe roughness when calculating the friction factor.

Correct Answer: Option B

The Swamee-Jain equation is an explicit approximation of the Colebrook-White equation, allowing for direct calculation of f without iteration.

Q110:

What is the impact of biofilm growth on the friction factor of PVC pond pipes?

Biofilm decreases the effective pipe roughness, which significantly decreases the friction factor over time.
Biofilm increases the effective pipe roughness, which significantly increases the friction factor over time.
Biofilm has no impact on the effective pipe roughness or the friction factor in pipes.
Biofilm increases the internal diameter of the pipe, which decreases the friction factor significantly.

Correct Answer: Option B

Biofilm and algae buildup create a rougher surface inside the pipe, increasing the relative roughness and thus the friction factor.

Q111:

How does the Darcy-Weisbach equation account for pipe length in head loss calculations?

Head loss is inversely proportional to the length of the pipe in the system.
Head loss is directly proportional to the length of the pipe in the system.
Head loss is proportional to the square of the length of the pipe system.
Head loss is independent of the length of the pipe in the system design.

Correct Answer: Option B

The Darcy-Weisbach equation is h_f = f * (L/D) * (v^2 / 2g), showing head loss is linearly proportional to pipe length L.

Q112:

What is the significance of the ‘smooth pipe’ line on the Moody chart?

It represents the upper bound of the friction factor for any given Reynolds number.
It represents the lower bound of the friction factor for any given Reynolds number.
It represents the transition point where flow becomes fully turbulent in all pipe materials.
It represents the line where the pipe roughness is equal to the pipe diameter.

Correct Answer: Option B

The smooth pipe line is the lowest possible friction factor curve on the Moody chart, representing the limit as roughness approaches zero.

Q113:

How does the velocity squared term in the Darcy-Weisbach equation affect head loss?

Doubling the velocity increases the head loss by a factor of four in pipes.
Doubling the velocity increases the head loss by a factor of two in pipes.
Doubling the velocity increases the head loss by a factor of eight in pipes.
Doubling the velocity decreases the head loss by a factor of four in pipes.

Correct Answer: Option A

Since head loss is proportional to v^2, doubling the velocity results in a 2^2 = 4 times increase in head loss.

Q114:

What is the effect of pipe diameter on head loss in turbulent flow?

Head loss is inversely proportional to the fifth power of the pipe diameter approximately.
Head loss is directly proportional to the fifth power of the pipe diameter approximately.
Head loss is inversely proportional to the square of the pipe diameter approximately.
Head loss is independent of the pipe diameter in the turbulent flow regime calculations.

Correct Answer: Option A

Since v = Q/A and A = pi*D^2/4, substituting into Darcy-Weisbach shows h_f is proportional to 1/D^5 for turbulent flow.

Q115:

Why is the Moody chart less accurate for very old, corroded metal pipes?

The chart is only valid for PVC and cannot be used for any metal pipes.
The chart assumes a uniform roughness, whereas corrosion creates non-uniform and unpredictable surface patterns.
The chart assumes the pipe is perfectly straight, which is never true for metal pipes.
The chart assumes the fluid is always water, which is not true for metal pipes.

Correct Answer: Option B

The Moody chart uses a single roughness value (epsilon), which cannot accurately model the complex, irregular pitting caused by pipe corrosion.

Q116:

What is the role of the gravity constant in the Darcy-Weisbach equation?

It accounts for the effect of the pipe’s orientation relative to the horizontal plane.
It adjusts the friction factor for the specific density of the fluid being pumped.
It converts the kinetic energy term into a head value expressed in units of length.
It is used to calculate the Reynolds number for the flow within the pipe.

Correct Answer: Option C

The term v^2 / 2g is the velocity head; dividing by g (acceleration due to gravity) ensures the units of head loss are in meters or feet.

Q117:

How does the friction factor change when moving from a smooth pipe to a rough pipe?

The friction factor decreases because the rougher surface creates more resistance to fluid flow.
The friction factor increases because the rougher surface creates more resistance to fluid flow.
The friction factor remains constant because it is independent of the pipe surface roughness.
The friction factor decreases because the rougher surface reduces the turbulence in the pipe.

Correct Answer: Option B

Higher relative roughness (epsilon/D) shifts the friction factor curve upward on the Moody chart, resulting in a higher friction factor.

Q118:

What is the significance of the ‘critical zone’ on the Moody chart?

It is the region where the friction factor is at its absolute maximum for pipes.
It is the region where the friction factor is at its absolute minimum for pipes.
It is the region where the pipe roughness has no effect on the friction factor.
It is the region where flow is unstable and transitioning between laminar and turbulent regimes.

Correct Answer: Option D

The critical zone (Re between 2000 and 4000) is characterized by unstable flow where the friction factor is difficult to predict accurately.

Q119:

How do pipe fittings like tees and elbows affect the Moody analysis?

They are typically accounted for using minor loss coefficients rather than the Moody chart.
They are ignored in hydraulic calculations because their impact on head loss is negligible.
They are accounted for by using a different Moody chart specifically for pipe fittings.
They are accounted for by reducing the Reynolds number in the Moody chart calculations.

Correct Answer: Option A

The Moody chart is for major (frictional) losses in straight pipes; fittings cause minor losses, usually calculated as h_m = K * (v^2 / 2g).

Q120:

What is the primary goal of using the Moody chart in koi pond design?

To determine the maximum pressure the PVC pipe can withstand before it bursts open.
To calculate the total volume of water in the pond system for chemical dosing.
To accurately estimate the total head loss to select an appropriately sized pond pump.
To find the optimal pipe color to prevent algae growth inside the pond piping.

Correct Answer: Option C

Accurate head loss estimation is essential for matching the pump’s performance curve to the system’s resistance to ensure adequate flow.

Fittings, Equivalent Length, and Minor Losses

Q121:

What is the primary factor determining the equivalent length of a standard 90-degree PVC elbow?

The total volume of water contained within the fitting during peak flow velocity.
The absolute roughness coefficient of the PVC material used in the injection molding process.
The ratio of the fitting bend radius to the internal pipe diameter.
The total surface area of the internal wall exposed to the turbulent flow boundary layer.

Correct Answer: Option C

Equivalent length is fundamentally determined by the geometry of the fitting, specifically the radius of the bend relative to the pipe diameter, which dictates the magnitude of flow separation.

Q122:

How does the equivalent length of a long-sweep 90-degree elbow compare to a standard short-radius elbow?

The long-sweep elbow exhibits a significantly lower equivalent length due to reduced flow separation.
The long-sweep elbow exhibits a significantly higher equivalent length due to increased total surface contact.
The long-sweep elbow exhibits an identical equivalent length because the total degree of turn remains constant.
The long-sweep elbow exhibits a variable equivalent length that fluctuates based on the system pump curve.

Correct Answer: Option A

Long-sweep elbows provide a more gradual change in flow direction, which minimizes turbulence and flow separation, resulting in lower minor losses.

Q123:

Why do threaded PVC fittings typically possess higher equivalent lengths than solvent-welded slip fittings?

Threaded fittings are manufactured from a higher density PVC material that increases internal wall friction.
Threaded fittings create internal flow obstructions and sudden changes in the effective cross-sectional area.
Threaded fittings require a larger outer diameter which forces the fluid to accelerate through the connection.
Threaded fittings are prone to thermal expansion which alters the internal geometry of the pipe wall.

Correct Answer: Option B

The threads create small steps and gaps that disrupt laminar flow, causing localized turbulence and higher head loss compared to smooth slip connections.

Q124:

What happens to the minor loss coefficient of a tee fitting when flow is diverted at a 90-degree angle?

The loss coefficient decreases because the fluid velocity is reduced by the branching of the flow.
The loss coefficient increases significantly compared to flow passing straight through the run.
The loss coefficient remains constant regardless of the direction of the flow through the tee fitting.
The loss coefficient becomes negligible because the branch path offers less resistance than the main run.

Correct Answer: Option B

Diverting flow through a branch requires a change in momentum, which creates more turbulence and higher energy loss than straight-through flow.

Q125:

In hydraulic calculations, why is the equivalent length method preferred for minor losses in koi ponds?

It simplifies complex fitting geometries into a single length of straight pipe for calculation.
It provides a more accurate measurement of the absolute roughness of the PVC pipe walls.
It eliminates the need to account for the velocity head in the total dynamic head.
It allows for the calculation of friction losses without knowing the fluid density or viscosity.

Correct Answer: Option A

The equivalent length method allows engineers to treat fittings as additional pipe length, making the total system head loss calculation much more straightforward.

Q126:

How does a sudden pipe expansion affect the minor loss coefficient in a hydraulic system?

The loss coefficient is independent of the area ratio and depends solely on the fluid velocity.
The loss coefficient increases linearly with the length of the transition section between the pipes.
The loss coefficient is zero because the expansion allows the fluid to slow down and stabilize.
The loss coefficient is determined by the ratio of the two different pipe cross-sectional areas.

Correct Answer: Option D

Sudden expansions cause flow separation and eddy formation, with the magnitude of the loss directly related to the change in cross-sectional area.

Q127:

What is the primary cause of minor losses in a standard PVC ball valve when fully open?

The mechanical friction between the valve handle and the stem during the operation of flow.
The chemical reaction between the PVC valve body and the water causing surface degradation.
The internal geometry of the ball and the slight reduction in flow passage area.
The thermal expansion of the valve seat which restricts the flow path at high temperatures.

Correct Answer: Option C

Even when fully open, the ball valve’s internal port is often slightly smaller than the pipe ID, and the shape of the ball creates minor flow disturbances.

Q128:

Why should a designer minimize the use of close-coupled fittings in a koi pond plumbing system?

They prevent the flow profile from redeveloping, leading to cumulative and unpredictable minor losses.
They increase the total weight of the plumbing system which requires additional support and bracing.
They make it impossible to perform maintenance on the system without cutting the entire pipe.
They reduce the total volume of water in the system which affects the biological filtration.

Correct Answer: Option A

When fittings are placed too close together, the turbulence from one fitting interferes with the next, preventing the flow from stabilizing and increasing total head loss.

Q129:

What is the effect of a sharp-edged entrance on the minor loss coefficient of a pipe?

It reduces the entrance loss coefficient by streamlining the flow as it enters the pipe.
It creates a vena contracta that significantly increases the entrance loss coefficient for the system.
It has no effect on the entrance loss coefficient because the pipe diameter remains constant.
It increases the entrance loss coefficient only when the fluid velocity is below one foot.

Correct Answer: Option B

A sharp-edged entrance causes the flow to contract, creating a vena contracta that results in significant energy loss as the flow expands to fill the pipe.

Q130:

How does the equivalent length of a 45-degree elbow compare to a 90-degree elbow?

The 45-degree elbow has a significantly lower equivalent length due to the shallower turn.
The 45-degree elbow has a higher equivalent length because it requires more pipe to install.
The 45-degree elbow has an identical equivalent length because both are standard PVC fittings.
The 45-degree elbow has a lower equivalent length only when used in high-pressure systems.

Correct Answer: Option A

The 45-degree turn is less abrupt than a 90-degree turn, resulting in less flow separation and lower energy loss per fitting.

Q131:

What is the primary hydraulic benefit of using a wye fitting instead of a standard tee?

The wye fitting is easier to install in tight spaces where a tee would not fit.
The wye fitting is made of thicker PVC which provides better structural integrity for ponds.
The wye fitting provides a more gradual flow transition, reducing turbulence and minor losses.
The wye fitting is cheaper to manufacture and therefore reduces the overall cost of plumbing.

Correct Answer: Option C

The angled entry of a wye fitting allows the incoming flow to merge more smoothly with the main flow, minimizing the energy loss associated with abrupt changes.

Q132:

How does the internal surface finish of a PVC fitting affect its minor loss coefficient?

The internal surface finish has no impact on the minor loss coefficient of PVC fittings.
A rougher internal finish is preferred because it helps to break up large turbulent eddies.
A smoother internal finish reduces skin friction and minimizes the formation of boundary layer turbulence.
The internal surface finish only affects the minor loss coefficient at very low flow rates.

Correct Answer: Option C

While minor losses are dominated by geometry, surface roughness still contributes to skin friction, and smoother surfaces minimize the energy lost to wall friction.

Q133:

What is the impact of using a reducer bushing on the minor loss of a piping system?

It eliminates all minor losses by smoothing the transition between the two different pipe sizes.
It increases the minor loss only if the reducer is installed in a vertical pipe section.
It introduces a minor loss due to the sudden change in the pipe cross-sectional area.
It reduces the minor loss by increasing the velocity of the fluid through the smaller pipe.

Correct Answer: Option C

Any change in pipe diameter, whether an expansion or a contraction, creates a disturbance in the flow that results in a measurable minor loss.

Q134:

Why is the equivalent length of a fitting dependent on the pipe diameter?

The equivalent length is constant for all pipe sizes because the fitting geometry remains identical.
The equivalent length is determined by the total volume of the fitting relative to the pipe.
The equivalent length is calculated by multiplying the fitting diameter by the pipe wall thickness.
The ratio of the fitting’s resistance to the pipe’s friction changes with the pipe size.

Correct Answer: Option D

Equivalent length is a scaling factor; as the pipe diameter changes, the relative resistance of the fitting compared to the pipe changes, requiring diameter-specific values.

Q135:

What is the primary hydraulic disadvantage of using a swing check valve in a pond system?

The swing check valve is prone to leaking because the seal is not designed for water.
The internal flap creates a significant obstruction that increases the minor loss coefficient.
The swing check valve is only effective when installed in a perfectly vertical pipe section.
The swing check valve creates a vacuum that can damage the pump during normal operation.

Correct Answer: Option B

The physical presence of the valve flap in the flow path, even when open, creates a significant obstruction that causes turbulence and energy loss.

Q136:

How does the presence of a union fitting affect the minor loss in a PVC plumbing line?

It introduces a significant minor loss due to the large diameter of the union nut assembly.
It eliminates all minor losses by allowing for a perfectly smooth transition between pipe sections.
It is the primary source of head loss in most professional koi pond plumbing installations.
It introduces a negligible minor loss provided the internal bore remains flush and unobstructed.

Correct Answer: Option D

A properly installed union with a flush internal bore creates very little flow disturbance, making its contribution to minor losses minimal.

Q137:

What is the effect of a partially closed gate valve on the minor loss coefficient?

The loss coefficient remains constant because the gate valve is designed for full flow only.
The loss coefficient decreases because the restriction forces the water to move more quickly.
The loss coefficient increases exponentially as the gate restricts the flow passage area.
The loss coefficient is only affected if the valve is closed more than fifty percent.

Correct Answer: Option C

As a gate valve is closed, the opening becomes smaller, causing the fluid to accelerate and creating significant turbulence and pressure drop.

Q138:

Why is it important to account for minor losses in low-head koi pond systems?

Minor losses are the only source of head loss in low-head systems and must be calculated.
Minor losses are negligible in low-head systems and can be ignored for pump sizing purposes.
Minor losses can represent a significant percentage of the total dynamic head in low-head systems.
Minor losses are the primary factor in determining the biological capacity of the pond filter.

Correct Answer: Option C

In systems where the total head is very low, even small losses from fittings can significantly impact the pump’s flow rate and overall system efficiency.

Q139:

What is the hydraulic impact of using a flexible PVC coupling instead of a rigid fitting?

The flexible coupling reduces the minor loss by absorbing the vibrations from the pump motor.
The flexible coupling increases the minor loss only if the pipe ends are not cut square.
The flexible coupling is more efficient than a rigid fitting because it is easier to install.
The internal step created by the coupling wall increases the minor loss coefficient.

Correct Answer: Option D

Flexible couplings often have an internal shoulder or step where the pipe ends meet, which creates a flow disturbance and increases minor losses.

Q140:

How do you calculate the total equivalent length of a complex piping system?

Multiply the equivalent length of each fitting by the total number of fittings in the system.
Sum the equivalent lengths of all individual fittings and add them to the pipe length.
Divide the total pipe length by the number of fittings to find the average equivalent length.
Calculate the equivalent length of the longest path and ignore all other branches in the system.

Correct Answer: Option B

The total equivalent length is the sum of the physical pipe length and the equivalent lengths of all fittings, providing a single value for head loss calculations.

Flow Rate, Velocity, and Head-Loss Sizing

Q141:

What is the recommended maximum flow velocity in PVC pond plumbing to prevent excessive head loss?

Flow velocities should be kept below ten feet per second to ensure proper biological filtration.
Flow velocities should be kept below fifteen feet per second to prevent pipe wall erosion.
Flow velocities should generally be kept below five feet per second for efficiency.
Flow velocities should be kept below one foot per second to maintain laminar flow conditions.

Correct Answer: Option C

Keeping velocity below 5 fps is a standard engineering practice to balance pipe size costs with the exponential increase in friction head loss.

Q142:

How does the Hazen-Williams equation relate flow rate to head loss in PVC piping?

It calculates the exact laminar flow resistance by measuring the viscosity of the pond water.
It determines the pump curve efficiency by comparing the inlet pressure to the outlet pressure.
It provides a linear relationship between the pipe length and the total pressure in the system.
It uses a roughness coefficient to estimate head loss based on flow and pipe diameter.

Correct Answer: Option D

The Hazen-Williams equation is the standard empirical formula used to calculate head loss in water distribution systems, including PVC pond plumbing.

Q143:

What is the relationship between pipe diameter and head loss for a constant flow rate?

Head loss increases linearly as the pipe diameter increases for a given flow rate of water.
Head loss decreases significantly as the pipe diameter increases for a given flow rate.
Head loss remains constant regardless of the pipe diameter for a given flow rate of water.
Head loss increases exponentially as the pipe diameter increases for a given flow rate of water.

Correct Answer: Option B

Because velocity is inversely proportional to the square of the diameter, increasing the diameter drastically reduces velocity and, consequently, the friction head loss.

Q144:

Why is the Reynolds number critical when sizing pipes for koi pond filtration systems?

It determines whether the flow is laminar or turbulent, which affects friction calculations.
It calculates the total volume of water that the pond filter can process per hour.
It measures the chemical concentration of ammonia and nitrites within the pond water system.
It identifies the maximum pressure that the PVC pipe can withstand before structural failure.

Correct Answer: Option A

The Reynolds number defines the flow regime; turbulent flow (common in ponds) results in much higher friction losses than laminar flow.

Q145:

What happens to the friction head loss if the flow rate in a pipe is doubled?

The friction head loss increases by exactly two times the original value of the system.
The friction head loss increases by eight times the original value of the system flow.
The friction head loss remains the same because the pipe diameter has not been changed.
The friction head loss increases by approximately four times the original value.

Correct Answer: Option D

In the turbulent flow regime typical of pond plumbing, head loss is roughly proportional to the square of the velocity (and thus the flow rate).

Q146:

How does the C-factor in the Hazen-Williams equation reflect the condition of PVC pipe?

A higher C-factor indicates a smoother pipe wall and lower friction head loss.
A higher C-factor indicates a rougher pipe wall and higher friction head loss for water.
A higher C-factor indicates that the pipe is made of a more durable PVC material.
A higher C-factor indicates that the pipe is designed for higher pressure applications only.

Correct Answer: Option A

The C-factor represents the smoothness of the pipe interior; PVC is very smooth, typically having a high C-factor (around 150), resulting in low friction.

Q147:

What is the primary purpose of calculating the Total Dynamic Head (TDH) for a pond pump?

To calculate the total electrical consumption of the pump motor during peak operation hours.
To match the pump’s performance curve to the actual resistance of the plumbing system.
To estimate the total amount of biological filtration media required for the pond system.
To identify the maximum pressure that the plumbing system can handle before leaking occurs.

Correct Answer: Option B

TDH accounts for both static lift and friction losses, allowing the designer to select a pump that will provide the desired flow rate.

Q148:

Why is it inefficient to use a pipe that is too small for the desired flow rate?

High velocities lead to excessive friction head loss, requiring a more powerful pump.
Small pipes are more expensive to install because they require more fittings and support.
Small pipes are prone to clogging with debris because the flow is not fast enough.
Small pipes are not rated for the high pressure required by most pond filtration systems.

Correct Answer: Option A

Small pipes increase velocity, which increases friction head loss exponentially, forcing the pump to work harder and consume more energy.

Q149:

What is the effect of water temperature on the friction head loss in a PVC pipe?

Higher water temperatures significantly increase the friction head loss due to thermal expansion.
Higher water temperatures slightly reduce viscosity, which can marginally decrease friction head loss.
Higher water temperatures increase the viscosity of the water, which increases friction loss.
Higher water temperatures cause the PVC pipe to soften, which increases the friction loss.

Correct Answer: Option B

While the effect is often small in pond applications, lower viscosity at higher temperatures reduces the Reynolds number and friction factor, slightly lowering head loss.

Q150:

How does the internal diameter of Schedule 40 PVC compare to Schedule 80 PVC?

Schedule 80 PVC has a larger internal diameter than Schedule 40 for the same pipe size.
Schedule 80 PVC has the same internal diameter as Schedule 40 for the same pipe size.
Schedule 80 PVC has a smaller internal diameter than Schedule 40 for the same size.
Schedule 80 PVC has a variable internal diameter that depends on the manufacturer of the pipe.

Correct Answer: Option C

Schedule 80 pipe has thicker walls to withstand higher pressures, which results in a smaller internal diameter compared to Schedule 40 pipe of the same nominal size.

Q151:

What is the impact of using a long pipe run on the total system head loss?

Friction head loss decreases as the pipe run gets longer due to the stabilization of flow.
Friction head loss remains constant regardless of the length of the pipe run in the system.
Friction head loss increases exponentially with the length of the pipe run in the system.
Friction head loss increases linearly with the total length of the pipe run.

Correct Answer: Option D

Friction loss is directly proportional to the length of the pipe; doubling the length of the pipe run doubles the friction head loss.

Q152:

Why is it important to consider the pump curve when sizing pipes for a koi pond?

The pump curve determines the maximum volume of water that the pond can hold safely.
The pump’s flow rate changes based on the total head pressure of the system.
The pump curve is used to calculate the electrical cost of running the pump per month.
The pump curve helps to determine the optimal pipe material for the pond plumbing system.

Correct Answer: Option B

Pumps are not constant-flow devices; as system head increases, the flow rate provided by the pump decreases, which must be accounted for during design.

Q153:

What is the primary benefit of oversizing the plumbing in a koi pond system?

It increases the total volume of water in the system, which improves the biological filtration.
It makes the plumbing system more resistant to the high pressures found in deep ponds.
It reduces the total number of fittings required, which simplifies the installation process.
It significantly reduces friction head loss, allowing for more efficient pump operation.

Correct Answer: Option D

Oversizing pipes reduces velocity, which drastically lowers friction head loss, leading to lower energy consumption and better pump performance.

Q154:

How do you determine the velocity of water in a pipe if you know the flow rate?

Multiply the flow rate by the pipe’s internal diameter and divide by the pipe’s total length.
Divide the pipe’s internal diameter by the flow rate and multiply by the fluid’s viscosity.
Square the flow rate and divide by the cross-sectional area of the pipe’s internal bore.
Divide the flow rate by the cross-sectional area of the pipe’s internal bore.

Correct Answer: Option D

Velocity is defined as the volumetric flow rate divided by the cross-sectional area of the pipe (V = Q/A).

Q155:

What is the significance of the ‘critical velocity’ in a piping system?

It is the maximum velocity that the pipe can withstand before it begins to erode.
It is the velocity at which the flow transitions from laminar to turbulent.
It is the velocity at which the pump is most efficient at moving the water.
It is the velocity at which the water begins to cavitate within the pump housing.

Correct Answer: Option B

The transition from laminar to turbulent flow occurs at a specific Reynolds number, which corresponds to a critical velocity for a given pipe diameter.

Q156:

Why should you avoid using 90-degree elbows when a long-sweep bend is possible?

Long-sweep bends are cheaper to purchase and easier to install than standard 90-degree elbows.
Long-sweep bends create less turbulence and have a lower equivalent length than elbows.
Long-sweep bends are more durable and less likely to leak than standard 90-degree elbows.
Long-sweep bends are designed to be used in high-pressure systems, unlike standard elbows.

Correct Answer: Option B

Long-sweep bends provide a more gradual change in direction, which minimizes flow separation and turbulence, thereby reducing minor losses.

Q157:

What is the impact of a clogged intake screen on the total system head loss?

It has no impact on the total system head loss because the pump will compensate for it.
It reduces the total system head loss by restricting the flow of water into the pipe.
It creates a significant pressure drop, increasing the total head loss of the system.
It causes the water to become more laminar, which reduces the friction loss in the pipe.

Correct Answer: Option C

A clogged screen acts as a major restriction, causing a large pressure drop at the intake, which increases the total head the pump must overcome.

Q158:

How does the pipe material’s roughness affect the friction head loss in a system?

Rougher materials decrease the friction factor, leading to lower head loss at high velocities.
Rougher materials are preferred because they help to break up large turbulent eddies effectively.
Rougher materials are more expensive to manufacture and therefore increase the total system cost.
Rougher materials increase the friction factor, leading to higher head loss at high velocities.

Correct Answer: Option D

The friction factor in the Darcy-Weisbach equation is dependent on the relative roughness of the pipe; rougher pipes create more resistance to flow.

Q159:

What is the relationship between the pump’s power consumption and the system head loss?

Higher head loss allows the pump to work less, decreasing its total power consumption.
Higher head loss has no effect on the pump’s power consumption in a closed system.
Higher head loss requires the pump to work harder, increasing its power consumption.
Higher head loss is inversely proportional to the pump’s power consumption in all cases.

Correct Answer: Option C

To maintain a specific flow rate against higher head loss, the pump must exert more energy, which directly increases its electrical power consumption.

Q160:

Why is it important to calculate the head loss for the most restrictive path in a pond?

The pump must be sized to overcome the average resistance of all paths in the pond.
The pump must be sized to overcome the least restrictive path in the pond system.
The pump must be sized to overcome the resistance of the most restrictive path.
The pump must be sized to overcome the total resistance of all paths combined together.

Correct Answer: Option C

If the pump cannot overcome the resistance of the most restrictive path, the desired flow rate will not be achieved in that section of the pond.

Measurement, Commissioning, and Model Verification

Q161:

Which parameter is primarily used to verify the Hazen-Williams C-factor in a commissioned koi pond system?

The measured pressure drop across a known length of straight pipe section.
The total volume of the biological filter media within the main filtration chamber.
The calculated velocity of water flow through the ultraviolet clarifier quartz sleeve assembly.
The ambient temperature of the surrounding soil during the peak summer afternoon heat cycle.

Correct Answer: Option A

The C-factor is empirically derived by measuring the head loss over a specific distance of pipe at a known flow rate.

Q162:

When verifying laminar flow models, what is the critical threshold for the Reynolds number?

The Reynolds number must exceed five thousand to ensure stable laminar flow characteristics.
The Reynolds number should be exactly ten thousand for optimal biological filter performance.
The Reynolds number must stay below five hundred to prevent turbulent pipe wall friction.
The Reynolds number must remain below two thousand three hundred for laminar conditions.

Correct Answer: Option D

Flow is considered laminar when the Reynolds number is below approximately 2300, where viscous forces dominate.

Q163:

How does pipe aging affect the friction coefficient in Schedule 40 PVC installations?

Chemical leaching from the PVC material causes the pipe walls to become smoother.
Biofilm accumulation increases surface roughness and reduces the effective pipe diameter over time.
The pipe material undergoes structural hardening which decreases the internal friction coefficient significantly.
Ultraviolet radiation exposure from sunlight causes the internal surface to become perfectly polished.

Correct Answer: Option B

Biofilm buildup creates a rougher internal surface, increasing friction and slightly reducing the cross-sectional area.

Q164:

What is the primary purpose of using a manometer during pond system commissioning?

To determine the total dissolved oxygen concentration within the main biological filtration unit.
To calibrate the flow meter by measuring the total volume of water in circulation.
To accurately measure differential pressure across specific pipe segments for friction verification.
To calculate the total head pressure required for the pond waterfall height elevation.

Correct Answer: Option C

Manometers provide precise differential pressure readings, which are essential for calculating friction losses in piping.

Q165:

In model verification, why is the Darcy-Weisbach equation preferred over Hazen-Williams for low-flow laminar conditions?

It is easier to calculate manually without the need for complex computer simulation software.
It assumes that all PVC pipe surfaces have an identical roughness coefficient of zero.
It is specifically designed for use with high-pressure industrial steel piping systems only.
It accounts for fluid viscosity and density variations more accurately than empirical formulas.

Correct Answer: Option D

Darcy-Weisbach is a physics-based equation that incorporates the Reynolds number and fluid properties, unlike the empirical Hazen-Williams.

Q166:

What effect does water temperature have on the friction coefficient in laminar flow?

Higher water temperatures decrease viscosity, which can alter the calculated friction factor.
Water temperature has no measurable effect on the friction coefficient in PVC piping.
Lower water temperatures increase the velocity of water, thereby reducing the friction coefficient.
Temperature changes only affect the friction coefficient when the flow is highly turbulent.

Correct Answer: Option A

Viscosity is temperature-dependent; since laminar friction is highly dependent on viscosity, temperature changes affect the friction factor.

Q167:

When commissioning a system, what does a higher-than-expected pressure drop indicate?

The presence of internal obstructions or excessive biofilm buildup within the piping.
The pump is operating at a higher efficiency than the original design specifications.
The water temperature is significantly lower than the design parameters for the system.
The friction coefficient of the PVC pipe has decreased due to natural polishing.

Correct Answer: Option A

Unexpected pressure drops suggest increased resistance, typically caused by debris, biofilm, or design errors.

Q168:

Which instrument is best for verifying flow velocity in a pond piping system?

An ultrasonic flow meter mounted externally on the PVC pipe surface.
A standard pressure gauge installed at the discharge side of the circulation pump.
A digital thermometer used to measure the water temperature at the pond surface.
A visual flow indicator that relies on a floating ball within a tube.

Correct Answer: Option A

Ultrasonic flow meters provide non-invasive, accurate velocity measurements without disrupting the flow or adding friction.

Q169:

What is the significance of the relative roughness of PVC pipe in hydraulic modeling?

It represents the total weight of the pipe per unit length in kilograms.
It is the measure of the pipe’s ability to withstand external soil pressure.
It is a ratio of pipe surface irregularities to the internal pipe diameter.
It defines the maximum flow rate that a pipe can handle before bursting.

Correct Answer: Option C

Relative roughness (e/D) is a dimensionless parameter used in the Moody chart to determine the friction factor.

Q170:

Why is it critical to purge air from a system before measuring friction losses?

Air pockets increase the density of the water, leading to higher friction coefficients.
Trapped air pockets create artificial resistance and inaccurate pressure readings during testing.
The presence of air causes the PVC pipe to vibrate, damaging the joints.
Air bubbles interfere with the electrical conductivity of the water in the pipes.

Correct Answer: Option B

Air pockets act as obstructions, causing localized head loss and erratic pressure readings that skew data.

Q171:

What is the primary limitation of using the Hazen-Williams equation for pond design?

It requires complex calculus to solve for the friction loss in simple systems.
It is only applicable to metal pipes and cannot be used for PVC.
It does not account for the length of the pipe in the calculation.
It is only valid for water at standard temperatures and turbulent flow conditions.

Correct Answer: Option D

Hazen-Williams is an empirical formula that lacks the precision of Darcy-Weisbach for varying fluid conditions.

Q172:

How does pipe diameter affect the friction loss in a pond circulation system?

Friction loss is independent of the pipe diameter for all flow velocities.
Friction loss decreases significantly as the internal diameter of the pipe increases.
Friction loss remains constant regardless of the diameter of the PVC pipe.
Friction loss increases exponentially as the pipe diameter becomes larger over time.

Correct Answer: Option B

Larger diameters reduce flow velocity for a given flow rate, which drastically lowers frictional head loss.

Q173:

What is the role of the Moody chart in verifying hydraulic models?

It calculates the total cost of the plumbing materials for the project.
It determines the optimal location for the pump in the pond system.
It identifies the best type of biological media for the filtration system.
It provides a graphical method to determine the friction factor for pipes.

Correct Answer: Option D

The Moody chart relates the Reynolds number and relative roughness to the Darcy friction factor.

Q174:

What is the impact of pipe fittings on total system friction loss?

Fittings have no impact on the total friction loss of the pond system.
Fittings introduce minor losses that must be added to the major friction losses.
Fittings reduce the total friction loss by smoothing the flow of water.
Fittings only add friction loss when the flow is in the laminar regime.

Correct Answer: Option B

Fittings like elbows and tees cause turbulence and flow separation, resulting in ‘minor’ head losses.

Q175:

Why is it important to verify the pump curve during system commissioning?

To ensure the pump is operating at its intended efficiency and flow rate.
To calculate the total volume of the pond in gallons or cubic meters.
To determine the amount of electricity the pump consumes during the winter.
To ensure the pump is not too powerful for the biological filter media.

Correct Answer: Option A

Comparing actual performance to the manufacturer’s pump curve confirms the system is operating as designed.

Q176:

What is the effect of flow velocity on the friction factor in turbulent flow?

The friction factor increases linearly as the flow velocity increases in turbulent flow.
The friction factor decreases slightly as the flow velocity increases in turbulent flow.
The friction factor remains constant regardless of the flow velocity in turbulent flow.
The friction factor increases exponentially as the flow velocity increases in turbulent flow.

Correct Answer: Option B

In the turbulent zone of the Moody chart, the friction factor decreases as the Reynolds number increases.

Q177:

How does pipe wall material influence the friction coefficient?

All pipe materials have the same friction coefficient regardless of their surface.
The friction coefficient is determined solely by the diameter of the pipe.
The material of the pipe is only important for the structural integrity.
Different materials have varying absolute roughness values that affect the friction factor.

Correct Answer: Option D

Absolute roughness is a property of the material surface, which directly impacts the friction factor.

Q178:

What is the primary benefit of using smooth-bore PVC in pond plumbing?

It increases the total volume of water that the pond can hold safely.
It makes the pipe easier to cut and install in tight pond spaces.
It minimizes the friction coefficient, reducing the energy required for water circulation.
It prevents the growth of algae on the outside of the pipe surface.

Correct Answer: Option C

Lower surface roughness results in lower friction, which reduces the head pressure the pump must overcome.

Q179:

What does a Reynolds number of 4000 signify in a pond piping system?

The flow is in the transition zone between laminar and turbulent flow.
The flow is stagnant and there is no movement of the water.
The flow is at the critical point where cavitation begins to occur.
The flow is optimal for the biological filtration of the pond water.

Correct Answer: Option A

The transition zone typically occurs between Reynolds numbers of 2300 and 4000.

Q180:

Why is head loss calculation critical for pump selection?

It calculates the amount of water lost to evaporation in the pond.
It determines the electrical cost of running the pump for one year.
It ensures the pump can deliver the required flow against system resistance.
It measures the amount of heat generated by the pump during operation.

Correct Answer: Option C

Pumps must be matched to the system’s total dynamic head to ensure the desired flow rate.

Troubleshooting and Energy-Efficiency Optimization

Q181:

Which modification most effectively reduces energy consumption in a pond circulation system?

Installing a more powerful pump to overcome the existing system friction losses.
Adding more elbows to the plumbing to improve the water mixing process.
Reducing the length of the pipe by placing the pump further away.
Increasing the pipe diameter to reduce flow velocity and frictional head loss.

Correct Answer: Option D

Reducing velocity by increasing diameter significantly lowers friction, allowing for smaller, more efficient pumps.

Q182:

What is the primary cause of sudden flow reduction in an established pond system?

The water temperature has increased, causing the PVC pipe to become brittle.
The pump has become more efficient over time, reducing the flow rate.
The pond water has become too clear, reducing the density of the water.
Accumulated debris or biological growth restricting the internal diameter of the pipes.

Correct Answer: Option D

Biofilm and debris buildup are the most common causes of increased friction and reduced flow.

Q183:

How can you troubleshoot a pump that is underperforming despite no visible leaks?

Increase the voltage to the pump to force it to run faster.
Replace the pump with a larger model to compensate for the loss.
Clean the exterior of the PVC pipe to reduce the friction loss.
Check for intake blockages or excessive friction losses in the suction piping.

Correct Answer: Option D

Suction-side restrictions are a common cause of pump underperformance, often mistaken for pump failure.

Q184:

What is the benefit of using long-sweep elbows instead of standard elbows?

They reduce turbulence and minor head loss within the piping system.
They are cheaper to purchase and easier to install in tight spaces.
They increase the total length of the pipe for better filtration.
They allow for a higher flow rate by increasing the pipe diameter.

Correct Answer: Option A

Long-sweep elbows provide a more gradual change in direction, minimizing flow separation and head loss.

Q185:

Why should you avoid using sharp 90-degree elbows in high-flow pond lines?

They are prone to leaking because of the high pressure at the joint.
They create significant turbulence and high localized friction losses in the system.
They make it difficult to clean the pipes with a plumbing snake.
They cause the water to become too hot due to the friction.

Correct Answer: Option B

Sharp turns cause flow separation, which is a major contributor to minor head loss.

Q186:

What is the most energy-efficient way to control flow in a pond system?

Using a variable frequency drive to adjust the pump speed directly.
Using a smaller pump that runs at a constant high speed.
Adding more pipe length to increase the resistance of the system.
Using a bypass loop to return water to the pond prematurely.

Correct Answer: Option A

VFDs adjust pump output to match demand, avoiding the energy waste of throttling valves.

Q187:

How does cavitation affect the efficiency and longevity of a pond pump?

It causes physical damage to the impeller and reduces overall pump efficiency.
It increases the flow rate by creating bubbles that act as lubricants.
It reduces the friction in the pipes by smoothing the water flow.
It makes the pump run cooler by circulating air through the system.

Correct Answer: Option A

Cavitation occurs when pressure drops below vapor pressure, causing bubbles to collapse and damage components.

Q188:

What is the primary indicator of excessive friction in a suction line?

The water in the pond becomes cloudy due to the lack of circulation.
The pressure gauge on the discharge side shows a very high reading.
The pipe joints start to leak due to the high internal pressure.
The pump exhibits signs of cavitation or reduced flow at the discharge.

Correct Answer: Option D

High suction friction restricts flow to the pump, leading to low-pressure conditions that cause cavitation.

Q189:

Why is it important to minimize the number of fittings in a pond system?

Each fitting adds to the total head loss, increasing the energy requirement.
Fittings are the most expensive part of the entire plumbing installation.
Fittings are prone to rusting if they are not made of high-quality PVC.
Fittings are not necessary for the proper operation of the pond system.

Correct Answer: Option A

Every fitting introduces minor head loss; minimizing them reduces the total dynamic head on the pump.

Q190:

What is the effect of a partially closed valve on system efficiency?

It improves the efficiency of the pump by reducing the flow rate.
It has no effect on the efficiency of the pond circulation system.
It reduces the friction in the pipes by slowing down the water.
It increases the system resistance and forces the pump to work harder.

Correct Answer: Option D

Throttling a valve increases head loss, which moves the pump operating point to a less efficient range.

Q191:

How can you optimize the energy efficiency of a long pipe run?

Increase the pipe diameter to lower the velocity and friction losses.
Install a more powerful pump to push the water through the pipe.
Add more valves to control the flow rate along the pipe run.
Use a smaller pipe to increase the velocity of the water flow.

Correct Answer: Option A

Velocity is the primary driver of friction loss; increasing diameter is the most effective optimization strategy.

Q192:

What is the impact of pipe wall smoothness on long-term energy costs?

Pipe wall smoothness is only important for the aesthetics of the pond.
Smoother pipes are more expensive and increase the initial project cost.
Pipe wall smoothness is irrelevant because the water is always moving.
Smoother pipes maintain lower friction, reducing the energy needed for circulation.

Correct Answer: Option D

Lower friction means less work for the pump, which translates to lower electricity consumption over time.

Q193:

What is the best way to troubleshoot a noisy pump in a pond system?

Replace the pump motor with a more powerful one to reduce noise.
Check for air leaks in the suction line or signs of cavitation.
Clean the exterior of the pump to remove any dirt or debris.
Install a larger pipe to increase the flow rate of the water.

Correct Answer: Option B

Noise is often caused by air ingestion or cavitation, both of which indicate suction-side issues.

Q194:

Why is it important to match the pump to the system’s head curve?

To ensure the pump operates at its peak efficiency point consistently.
To ensure the pump is compatible with the pond’s electrical system.
To calculate the total volume of the pond in gallons or liters.
To determine the amount of fish waste that the pump can handle.

Correct Answer: Option A

Operating a pump near its Best Efficiency Point (BEP) minimizes energy waste and mechanical wear.

Q195:

What is the primary cause of high head loss in a gravity-fed system?

The water temperature is too high, causing it to flow more slowly.
Small diameter piping that restricts the flow of water by gravity.
The pond is not deep enough to provide the necessary head pressure.
The air in the pipes is preventing the water from flowing properly.

Correct Answer: Option B

Gravity-fed systems rely on small head differences; any restriction in pipe diameter causes significant flow issues.

Q196:

How does the use of a check valve affect system friction?

It reduces the friction by smoothing the flow of water through the pipe.
It has no effect on the friction of the system during normal operation.
It is the most efficient way to control the flow in the pond system.
It adds significant minor head loss due to the internal flow obstruction.

Correct Answer: Option D

Check valves contain internal mechanisms that obstruct flow, creating a permanent minor head loss.

Q197:

What is the benefit of using a larger pipe for the suction line?

It increases the total volume of water that the pond can hold safely.
It reduces the risk of cavitation by lowering the suction side friction.
It prevents the growth of algae on the inside of the pipe surface.
It allows the pipe to be bent without the need for any fittings.

Correct Answer: Option B

Lowering suction friction ensures the pump receives adequate water, preventing the pressure drops that cause cavitation.

Q198:

How can you verify if a pipe is undersized for a specific flow rate?

Measure the temperature of the water at the end of the pipe run.
Check the electrical current draw of the pump motor while running.
Count the number of fittings used in the entire plumbing installation.
Calculate the flow velocity and compare it to recommended design limits.

Correct Answer: Option D

Design standards typically limit velocity (e.g., 5-7 fps) to prevent excessive friction and pipe erosion.

Q199:

What is the impact of pipe roughness on the pump’s operating point?

Increased roughness has no impact on the pump’s operating point.
Increased roughness shifts the system curve, increasing the pump’s flow.
Increased roughness shifts the system curve, reducing the pump’s flow rate.
Increased roughness is only a problem if the pipe is made of metal.

Correct Answer: Option C

Higher friction increases the system head, which moves the operating point leftward on the pump curve.

Q200:

Why is it important to use a pressure gauge on the pump discharge?

To measure the amount of water that is being lost to evaporation.
To determine the electrical cost of running the pump for one year.
To monitor the system head and detect changes in frictional resistance.
To measure the amount of heat generated by the pump during operation.

Correct Answer: Option C

Monitoring discharge pressure allows for the detection of system changes, such as clogs or increased friction.
